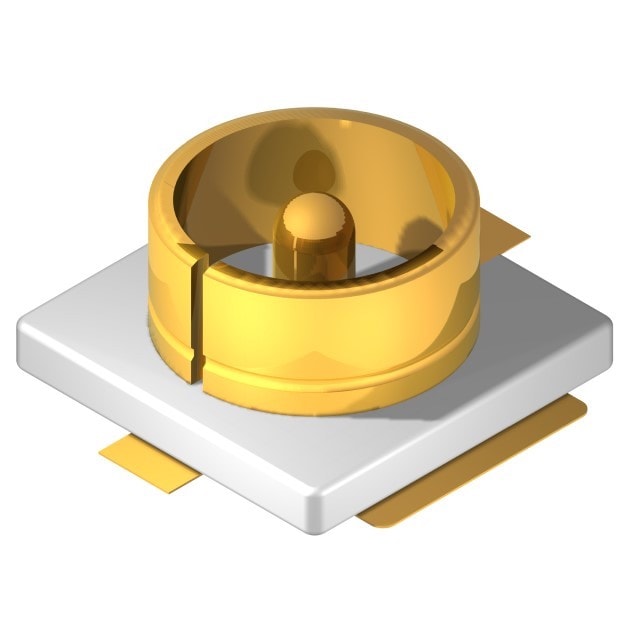

SCNRF-6AAN-P1FS
ActiveSuntsu Electronics, Inc
CONN IPEX JACK STR 50 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCNRF-6AAN-P1FS
ActiveSuntsu Electronics, Inc
CONN IPEX JACK STR 50 OHMS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCNRF-6AAN-P1FS |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | IPEX MHFI, Ultra Miniature (UM) |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.92 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.58 | |||
Description
General part information
SCNRF-6AAN Series
Ultra Miniature (UM), IPEX MHFI Connector Jack, Female Socket 50 Ohms Panel Mount Solder
