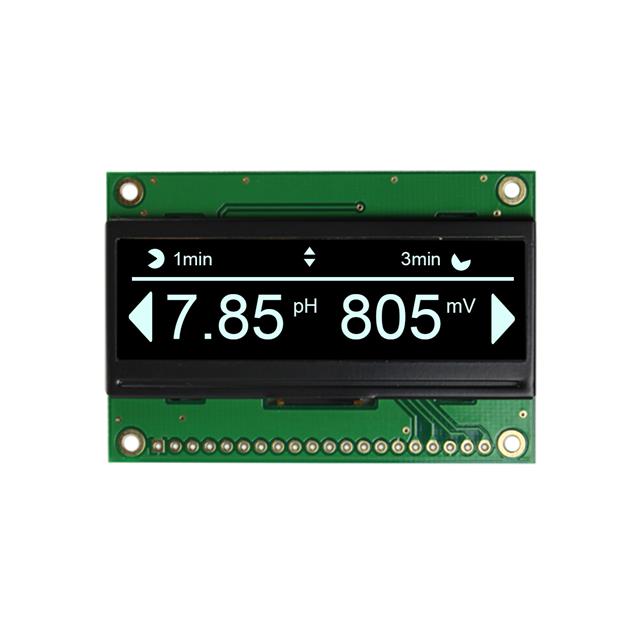

NHD-2.23-12832UCW3

Active

Newhaven Display Intl

2.23 GRAPHIC WHITE OLED

Search across all available documentation for this part.

Active

Newhaven Display Intl

2.23 GRAPHIC WHITE OLED

Technical Specifications

Parameters and characteristics for this part

Part	Background Color	Diagonal Screen Size	Diagonal Screen Size	Interface	Dot Pixels [y]	Dot Pixels [x]	Backlight	Controller Type	Viewing Area [x]	Viewing Area [y]	Graphics Color	Display Type	Dot Size [y]	Dot Size [x]
Newhaven Display Intl NHD-2.23-12832UMY3	Black	56.64 mm	2.23 in	I2C Parallel 8-Bit SPI	32	128	Without Backlight	SSD1305	60 mm	18 mm	Yellow	OLED - Passive Matrix
Newhaven Display Intl NHD-2.23-12832UMB3	Black	56.64 mm	2.23 in	I2C Parallel 8-Bit SPI	32	128	Without Backlight	SSD1305	60 mm	18 mm	Blue	OLED - Passive Matrix
Newhaven Display Intl NHD-2.23-12832UCY3	Black	56.64 mm	2.23 in	I2C Parallel 8-Bit SPI	32	128	Without Backlight	SSD1305	60 mm	18 mm	Yellow	OLED - Passive Matrix	0.39 mm	0.41 mm
Newhaven Display Intl NHD-2.23-12832UCW3		56.64 mm	2.23 in	Parallel Serial	32	128		SSD1305	60 mm	18 mm	White	OLED - Passive Matrix

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module White OLED - Passive Matrix Parallel, Serial 2.23" (56.64mm) 128 x 32

Technical documentation and resources
