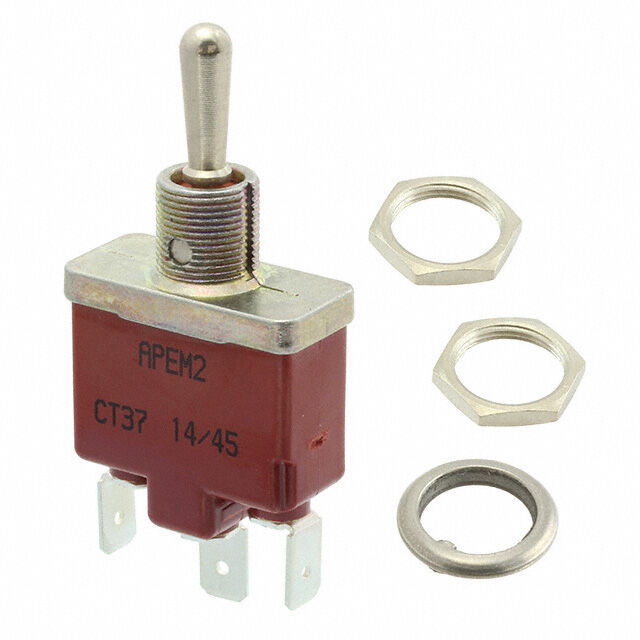

CT45031N002

Active

APEM

SWITCH TOGGLE DPDT 10A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CT45031N002

Actuator Length [x]	17.5 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	15 A, 10 A
Electrical Life	10000 Cycles
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Actuator Type	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Termination Style	Ingress Protection	Switch Function	Voltage Rating - DC	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Material	Current Rating (Amps)	Illumination	Circuit
APEM CT45031N002	125 V	Standard Round	10000 Cycles	12.2 mm	17.5 mm	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight Waterproof	On-Mom	28 V	15/32-32	85 °C	-40 °C	Sealed - Fully	Nickel Plated	10 A 15 A	Non-Illuminated	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 42.26

General part information

Toggle Switch DPDT Panel Mount
