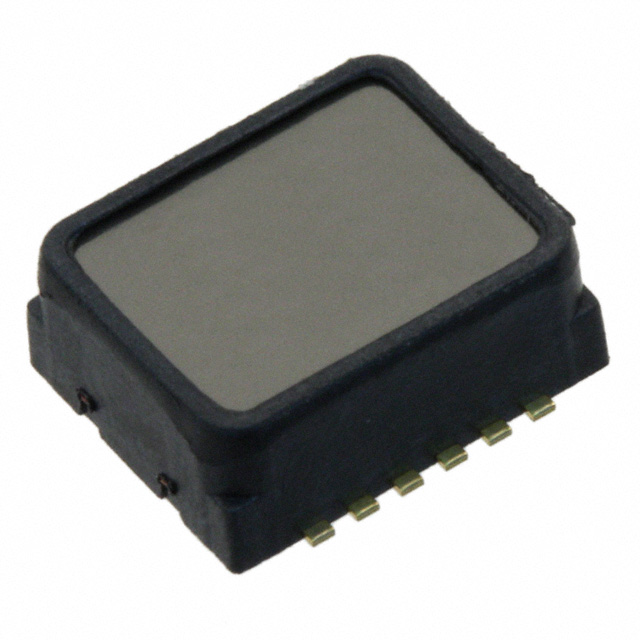

SCA3060-D01-1

Obsolete

Murata Power Solutions Inc.

ACCELEROMETER 2G SPI 12DFL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

ACCELEROMETER 2G SPI 12DFL

Technical Specifications

Parameters and characteristics for this part

Specification	SCA3060-D01-1

Acceleration Range [Max]	2 g
Acceleration Range [Min]	-2 g
Axis [x]	X
Axis [y]	Y
Axis [z]	Z
Bandwidth [Max]	55 Hz
Bandwidth [Min]	30 Hz
Features	Temperature Sensor, Adjustable Bandwidth
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output Type	SPI
Package / Case	12-SMD, Flat Lead
Qualification	AEC-Q100
Sensitivity (LSB/g)	1000 LSB/g
Supplier Device Package	12-DFL
Type	Digital
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Axis [z]	Axis [y]	Axis [x]	Qualification	Output Type	Supplier Device Package	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Sensitivity (LSB/g)	Mounting Type	Acceleration Range [Max]	Acceleration Range [Min]	Grade	Bandwidth [Max]	Bandwidth [Min]	Package / Case
Murata Power Solutions Inc. SCA3060-D01-1	Z	Y	X	AEC-Q100	SPI	12-DFL	Adjustable Bandwidth Temperature Sensor	-40 °C	105 ░C	3.6 V	3 V	Digital	1000 LSB/g	Surface Mount	2 g	-2 g	Automotive	55 Hz	30 Hz	12-SMD Flat Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g 30Hz ~ 55Hz 12-DFL

Technical documentation and resources
