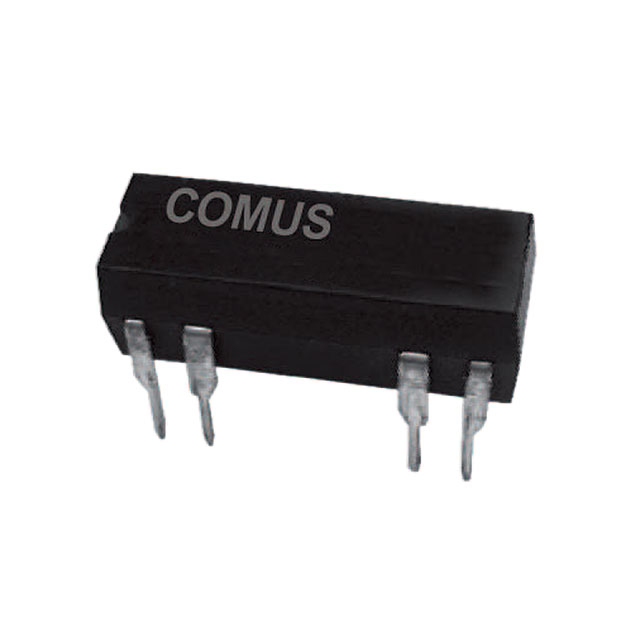

3570-1210-054
ActiveComus International
RELAY REED DIP SPST .5A 5V W/DIO
Deep-Dive with AI
Search across all available documentation for this part.
3570-1210-054
ActiveComus International
RELAY REED DIP SPST .5A 5V W/DIO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3570-1210-054 |
|---|---|
| Coil Current | 10 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Features | Diode, Electrostatic Shield |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.5 ms |
| Switching Voltage | 150 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.54 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.09 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.93 | |||
| 500 | $ 1.86 | |||
| 1000 | $ 1.80 | |||
| 5000 | $ 1.66 | |||
Description
General part information
3570-1210 Series
RELAY REED DIP SPST .5A 5V W/DIO
