OPB857Z

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB857Z

Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Pre-Wired
Sensing Distance	0.15 in
Sensing Distance	3.81 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Sensing Method	Output Configuration	Sensing Distance	Sensing Distance	Current - DC Forward (If) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case
TT Electronics/Optek Technology OPB857Z	Unamplified	30 V	Through-Beam	Phototransistor	0.15 in	3.81 mm	50 mA	-40 °C	80 C	Chassis Mount	Module Pre-Wired

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

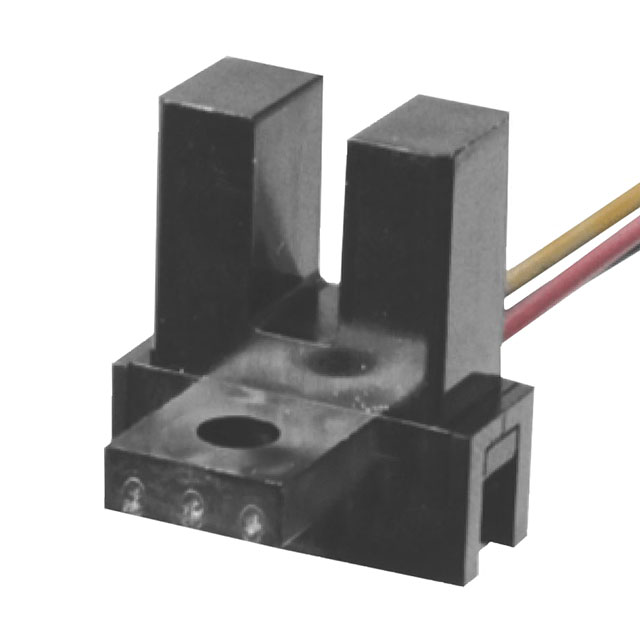

Optical Sensor Through-Beam 0.150" (3.81mm) Phototransistor Module, Pre-Wired

Technical documentation and resources

No documents available
