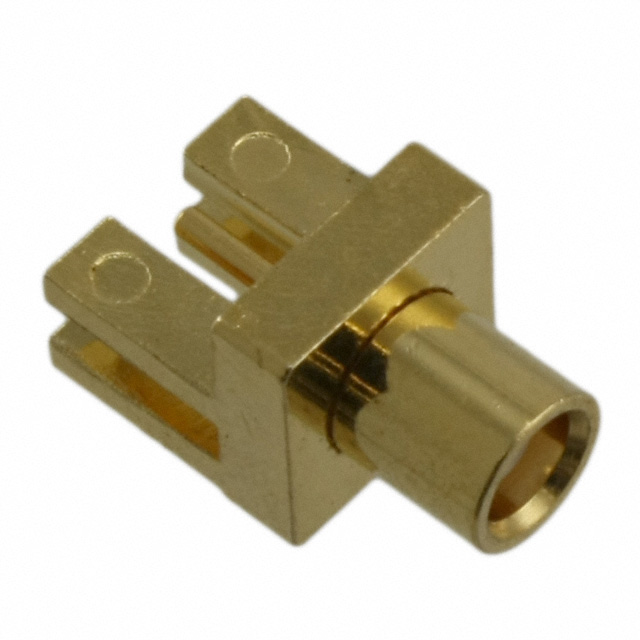

1261E504

Active

Winchester Interconnect

CONN MCX JACK STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Winchester Interconnect

CONN MCX JACK STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1261E504

Body Finish	Gold
Body Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Type	Body Finish	Impedance	Body Material	Connector Style	Housing Color	Frequency - Max [Max]	Mounting Type	Shield Termination	Voltage Rating	Center Contact Plating	Fastening Type	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Number of Ports
Winchester Interconnect 1261E504	Female Socket Jack	Gold	50 Ohms	Brass	MCX	Gold	6000 MHz	Board Edge End Launch	Solder	500 V	Gold	Snap-On	Solder	65 °C	-40 °C	Polytetrafluoroethylene (PTFE)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
