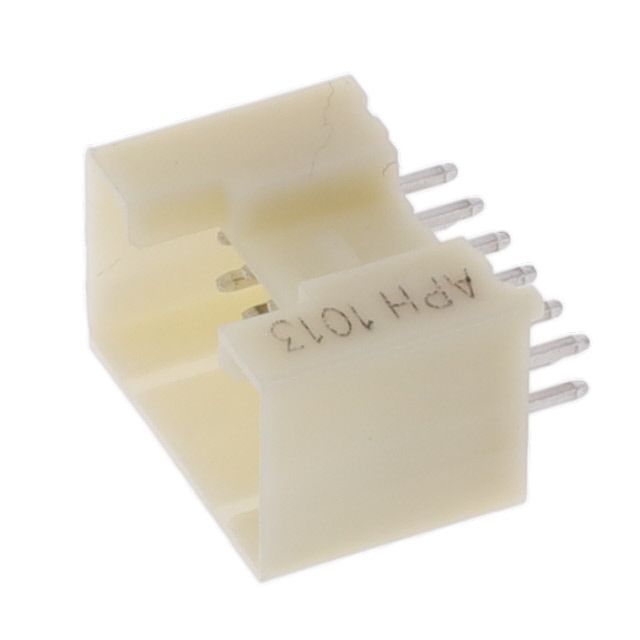

G86112111S1HR

Active

Amphenol ICC (Commercial Products)

PROTECT HEADER 2.0MM PITCH STR D

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PROTECT HEADER 2.0MM PITCH STR D

Technical Specifications

Parameters and characteristics for this part

Specification	G86112111S1HR

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Material	Polyamide (PA4T), Nylon 4T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Termination	Style	Contact Material	Insulation Height	Insulation Height	Connector Type	Features	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Shrouding	Number of Rows	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Mounting Type
Amphenol ICC (Commercial Products) G86112121S2HR	0.079 in	2 mm	Male Pin	Solder	Board to Cable/Wire	Copper Alloy	0.335 "	8.5 mm	Header	Board Guide	White	0.079 in	2 mm	12	UL94 V-0	All	Polyamide (PA4T) Nylon 4T	Tin	Shrouded - 4 Wall	2	Square	2.54 µm	100 µin	2.54 çm	100 çin	Push-Pull	Through Hole Right Angle
Amphenol ICC (Commercial Products) G86112111S1HR	0.079 in	2 mm	Male Pin	Solder	Board to Cable/Wire	Copper Alloy			Header	Board Guide	Natural	0.079 in	2 mm	12	UL94 V-0	All	Polyamide (PA4T) Nylon 4T	Tin	Shrouded - 4 Wall	2	Square	2.54 µm	100 µin	2.54 çm	100 çin	Locking Ramp	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.079" (2.00mm)
