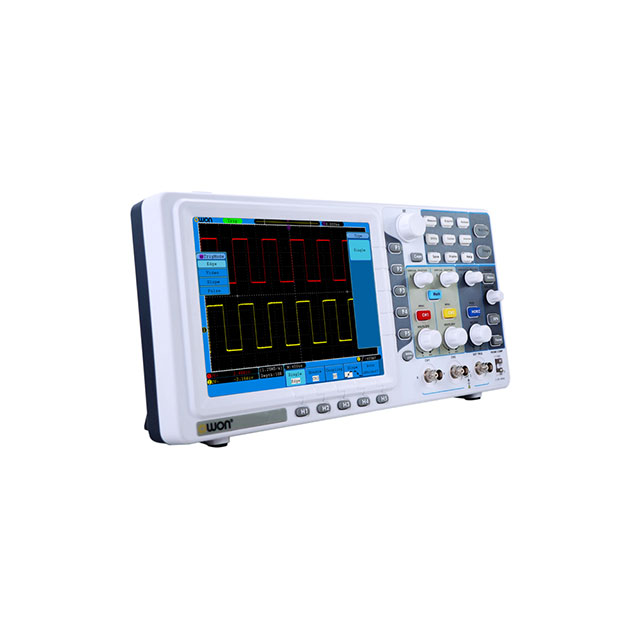

SDS5032E-V

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 30MHZ 2 CH 500MS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 30MHZ 2 CH 500MS/S

Technical Specifications

Parameters and characteristics for this part

Specification	SDS5032E-V

Bandwidth	30 MHz
Channels	2
Display Type	LCD - Color
Function	Record
Includes	Probe, Power Cord, USB Cable, Bag, Manual
Input Impedance	1 M, 15 pF
Interface	USB, Ethernet
Memory Size	10 kpts
Probe Type	Passive 10:1 (2)
Rise Time (Typ)	11 ns
Sampling Rate (Per Second)	500 M
Type	Bench
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Sampling Rate (Per Second)	Input Impedance	Includes	Channels	Rise Time (Typ)	Bandwidth	Voltage - Input (Max) [Max]	Memory Size	Probe Type	Interface	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Function
Owon Technology Lilliput Electronics (USA) Inc SDS5032E-V	500 M	1 M 15 pF	Bag Manual Power Cord Probe USB Cable	2	11 ns	30 MHz	400 V	10 kpts	Passive 10:1 (2)	Ethernet USB	Bench	100 VAC	240 VAC	LCD - Color	Record

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 309.00

General part information

30 MHz Bench Oscilloscopes Ethernet, USB Interface LCD - Color Display 2 Channel 400V Record

Technical documentation and resources

No documents available
