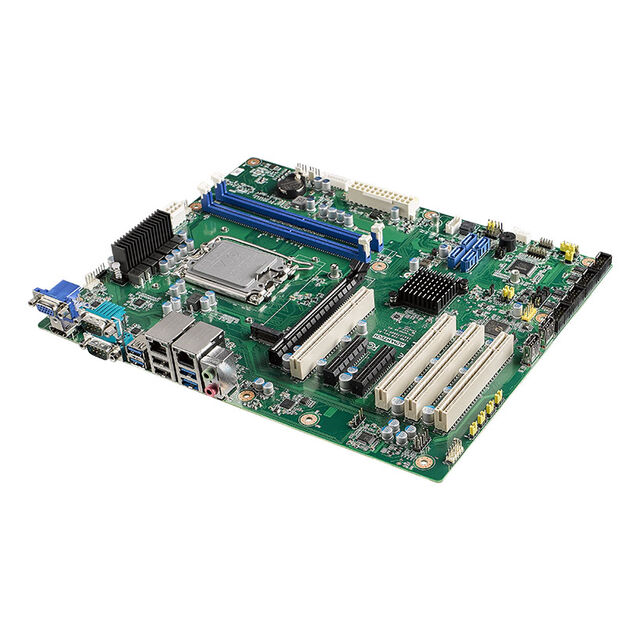

AIMB-708G2-00A1
ActiveAdvantech Corp
SBC 3.4GHZ 24 CORE 64GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
AIMB-708G2-00A1
ActiveAdvantech Corp
SBC 3.4GHZ 24 CORE 64GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-708G2-00A1 |
|---|---|
| Core Processor | Intel 13th/12th Gen Core i9/i7/i5/i3/Pentium/Celeron LGA 1700 |
| Ethernet | GbE (2), RJ45 (1) |
| Ethernet | 100 Mbps, 10 Mbps, 1000 Mbps |
| Expansion Site/Bus | M.2, SPI, PCIe, SATA, GPIO |
| Form Factor | ATX |
| Number of Cores | 14 Cores, 4, 16, 10, 24 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 0 GB, 64 GB |
| RS-232 (422, 485) | 1 |
| Size / Dimension | 244 mm, 304.8 mm |
| Size / Dimension [x] | 12 in |
| Size / Dimension [y] | 9.606 in |
| Speed | 2 GHz, 2.5 GHz, 1.4 GHz, 2.1 GHz, 3.4 GHz, 1.1 GHz, 1.6 GHz |
| Storage Interface | M.2, SATA 3.0 (4) |
| USB | USB 3.2 Gen 1 (6), USB 2.0 (4) |
| Video Outputs | VGA, HDMI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 468.00 | |
| 10 | $ 457.50 | |||
Description
General part information
AIMB-708 Series
Single Board Computer 1.1GHz, 1.4GHz, 1.6GHz, 2GHz, 2.1GHz, 2.5GHz, 3.4GHz 4/10/14/16/24 Core 64GB/0GB RAM Intel 13th/12th Gen Core i9/i7/i5/i3/Pentium/Celeron LGA 1700
