OSCAR20A/5M/SMAM/S/S/15

Active

Siretta Ltd

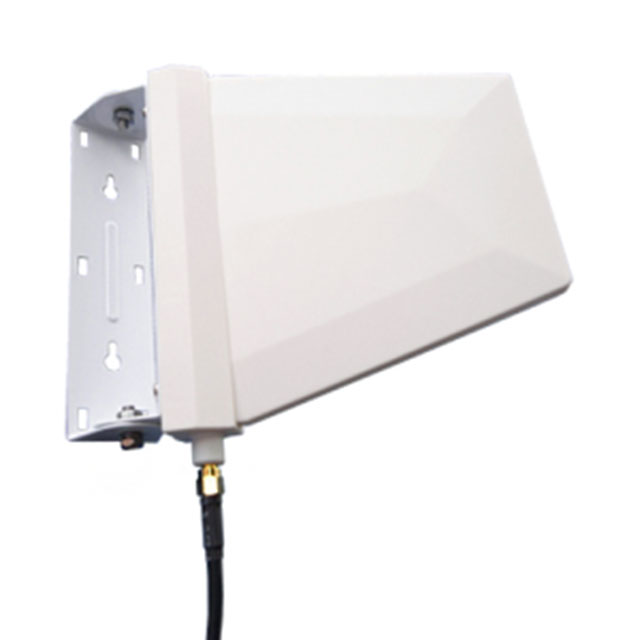

5G/4G/3G/2G YAGI ANTENNA SMA FEM

Search across all available documentation for this part.

Active

Siretta Ltd

5G/4G/3G/2G YAGI ANTENNA SMA FEM

Technical Specifications

Parameters and characteristics for this part

Specification	OSCAR20A/5M/SMAM/S/S/15

Antenna Type	Yagi
Applications	LoRa, WLAN, LTE, Wi-Fi, NB-IoT, 2G, UMTS, 5G, 3G, Bluetooth, 4G, Zigbee™, ISM
Features	5 m
Frequency (Center/Band)	2.3 GHz, 3.4 GHz, 2.6 GHz, 780 MHz, 1.94 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.17 GHz, 2.4 GHz, 3.5 GHz, 960 MHz, 2.7 GHz
Frequency Range [Min]	2.2 GHz, 1.71 GHz, 600 MHz, 2.5 GHz, 3.3 GHz
Gain	8 dBi, 7 dBi
Height (Max) [Max] [z]	35 mm
Height (Max) [Max] [z]	1.378 in
Mounting Type	Bracket Mount
Number of Bands [custom]	5
Power - Max [Max]	50 W
RF Family/Standard	Cellular, Bluetooth, WiFi, General ISM
Termination	SMA Female
VSWR	1.3

Part	Number of Bands	Frequency (Center/Band)	VSWR	Applications	RF Family/Standard	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Gain	Frequency Group	Antenna Type	Number of Bands [custom]	Frequency Range [Max]	Frequency Range [Min]	Termination	Power - Max [Max]	Features
Siretta Ltd OSCAR20/5M/SMAM/S/S/15	6	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 850 MHz 900 MHz	2	GPRS GSM LTE UMTS	Cellular	35 mm	1.378 in	Bracket Mount	8 dBi	Wide Band	Yagi
Siretta Ltd OSCAR20A/5M/SMAM/S/S/15		1.94 GHz 2.3 GHz 2.6 GHz 3.4 GHz 780 MHz	1.3	2G 3G 4G 5G Bluetooth ISM LoRa LTE NB-IoT UMTS Wi-Fi WLAN Zigbee™	Bluetooth Cellular General ISM WiFi	35 mm	1.378 in	Bracket Mount	7 dBi 8 dBi	Wide Band	Yagi	5	2.17 GHz 2.4 GHz 2.7 GHz 3.5 GHz 960 MHz	1.71 GHz 2.2 GHz 2.5 GHz 3.3 GHz 600 MHz	SMA Female	50 W	5 m
