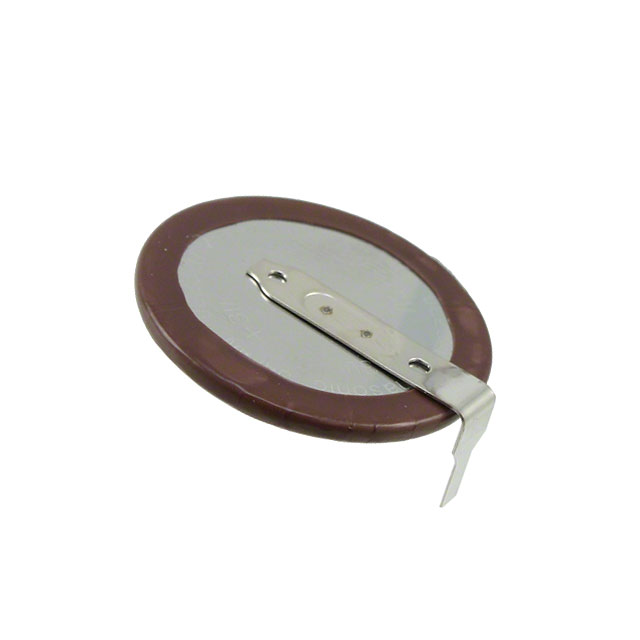

VL-2320/HFN

Obsolete

Panasonic Industrial Automation Sales

BATT LITH 3V 30MAH COIN 23.0MM

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

BATT LITH 3V 30MAH COIN 23.0MM

Technical Specifications

Parameters and characteristics for this part

Specification	VL-2320/HFN

Battery Cell Size	Coin
Battery Cell Size [diameter]	23 mm
Battery Chemistry	Lithium
Capacity	30 mAh
Discharge Rate	100 µA
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension [diameter]	0.91 "
Size / Dimension [diameter]	23 mm
Size / Dimension [z]	2 mm
Size / Dimension [z]	0.08 in
Standard Charge Current	2 mA
Termination Style	PC Pin (Horizontal Mount)
Voltage - Rated	3 VDC
Weight	2.7 g

Part	Termination Style	Discharge Rate	Shipping Info	Weight	Voltage - Rated	Battery Chemistry	Standard Charge Current	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Capacity	Battery Cell Size [diameter]	Battery Cell Size
Panasonic Industrial Automation Sales VL-2320/F2N	SMD (SMT) Tab	100 µA	Due to restrictions only ground shipment is allowed.	2.7 g	3 VDC	Lithium	2 mA	0.91 "	2 mm	23 mm	0.08 in	30 mAh	23 mm	Coin
Panasonic Industrial Automation Sales VL-2320/HFN	PC Pin (Horizontal Mount)	100 µA	Due to restrictions only ground shipment is allowed.	2.7 g	3 VDC	Lithium	2 mA	0.91 "	2 mm	23 mm	0.08 in	30 mAh	23 mm	Coin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coin, 23.0mm 3 V Lithium Battery Rechargeable (Secondary) 30mAh
