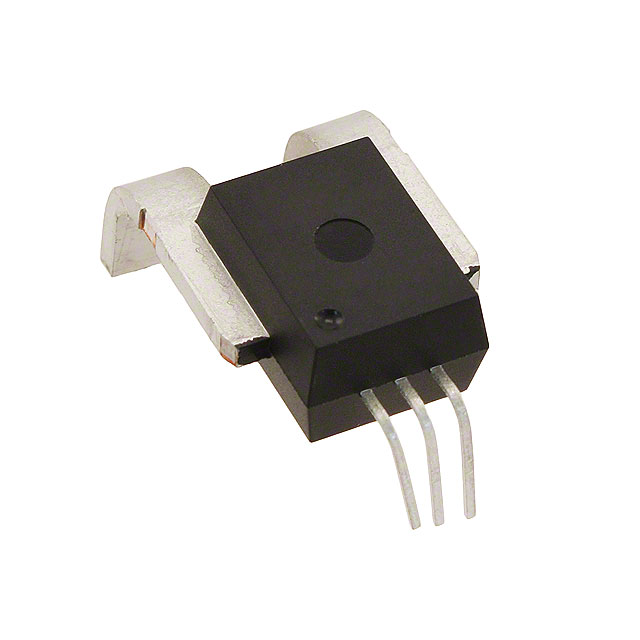

ACS759KCB-150B-PFF-T
ActiveAllegro MicroSystems
SENSOR CURRENT HALL 150A AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACS759KCB-150B-PFF-T
ActiveAllegro MicroSystems
SENSOR CURRENT HALL 150A AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACS759KCB-150B-PFF-T |
|---|---|
| Accuracy | 4 % |
| Current - Sensing | 150 A |
| Current - Supply (Max) [Max] | 13.5 mA |
| For Measuring | AC/DC |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | 5-CB Formed Leads, PFF |
| Polarization | Bidirectional |
| Response Time | 4 µs |
| Sensitivity | 8.8 mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Supplier Device Package | 5-CB Module |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.10 | |
| 5 | $ 7.32 | |||
| 10 | $ 7.03 | |||
| 34 | $ 6.57 | |||
| 68 | $ 6.34 | |||
| 102 | $ 6.21 | |||
| 510 | $ 5.77 | |||
| 1020 | $ 5.61 | |||
Description
General part information
ACS759 Series
Current Sensor 150A 1 Channel Hall Effect, Open Loop Bidirectional 5-CB Formed Leads, PFF
