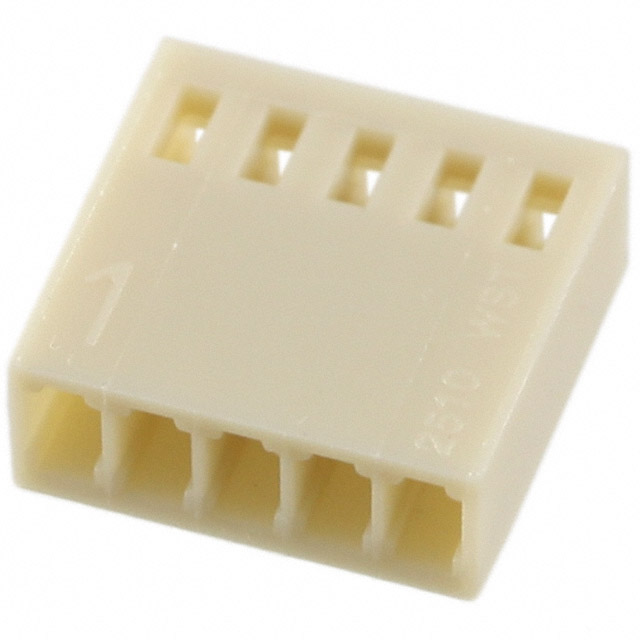

SWH25X-NULC-S05-UU-BA

Active

Sullins Connector Solutions

CONN RCPT HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN RCPT HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Mounting Type	Contact Termination	Color	Note	Pitch [x]	Pitch [x]	Contact Type	Insulation Material	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Sullins Connector Solutions SWH25X-NULC-S12-UU-BA	12	Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C
Sullins Connector Solutions SWH25X-NULC-S16-UU-BA		Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C	16
Sullins Connector Solutions SWH25X-NULC-S10-UU-BA	10	Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C
Sullins Connector Solutions SWH25X-NULC-S03-UU-BA		Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C
Sullins Connector Solutions SWH25X-NULC-S11-UU-BA	11	Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C
Sullins Connector Solutions SWH25X-NULC-S05-UU-BA		Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C
Sullins Connector Solutions SWH25X-NULC-S06-UU-BA	6	Free Hanging (In-Line)	Crimp	Beige	Contacts Not Included	2.54 mm	0.1 in	Female Socket	Nylon Polyamide (PA)	1	Receptacle	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle Beige 0.100" (2.54mm)
