A79045-001

Active

Omnetics

18 POSITION DUAL ROW FEMALE NANO

Search across all available documentation for this part.

Active

Omnetics

18 POSITION DUAL ROW FEMALE NANO

Technical Specifications

Parameters and characteristics for this part

Specification	A79045-001

Cable Termination	Crimp
Color	Multiple, Individual
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	18
Number of Rows	2
Pitch - Connector	0.025 in
Pitch - Connector	0.64 mm
Shielding	Unshielded

Part	Number of Positions	Number of Rows	Shielding	Pitch - Connector	Pitch - Connector	Cable Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Length [x]	Length [x]
Omnetics A79045-001	18	2	Unshielded	0.025 in	0.64 mm	Crimp	Individual Multiple	50 µin	1.27 µm	Gold	Socket to Individual Wire Leads	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

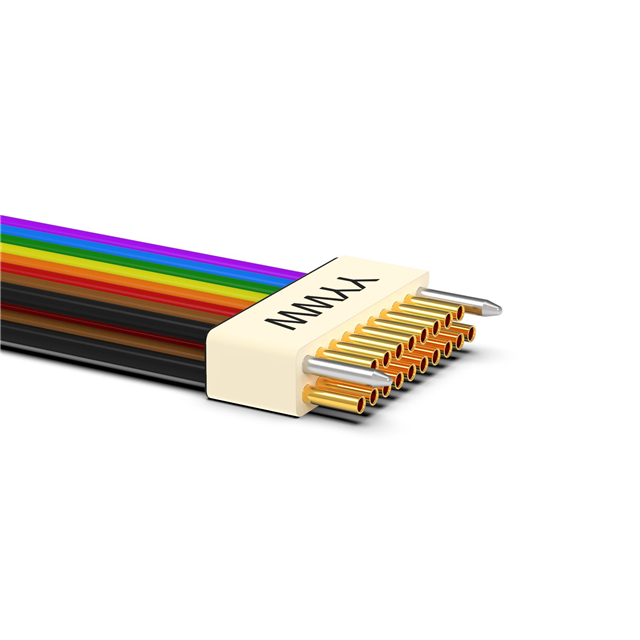

18 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.50' (457.20mm)
