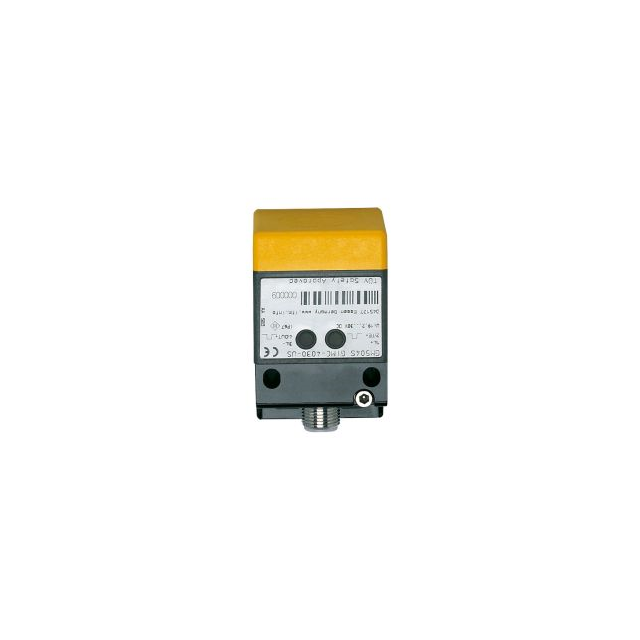

GM504S
Activeifm efector, inc.
SENSOR PROX INDUCT 10-15MM MOD
Deep-Dive with AI
Search across all available documentation for this part.
GM504S
Activeifm efector, inc.
SENSOR PROX INDUCT 10-15MM MOD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GM504S |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Zinc Die-Cast |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Module |
| Sensing Distance [Max] | 0.591 in |
| Sensing Distance [Max] | 15 mm |
| Sensing Distance [Min] | 10 mm |
| Sensing Distance [Min] | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 19.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 284.50 | |
Description
General part information
GM504 Series
SENSOR PROX INDUCT 10-15MM MOD
Documents
Technical documentation and resources
No documents available
