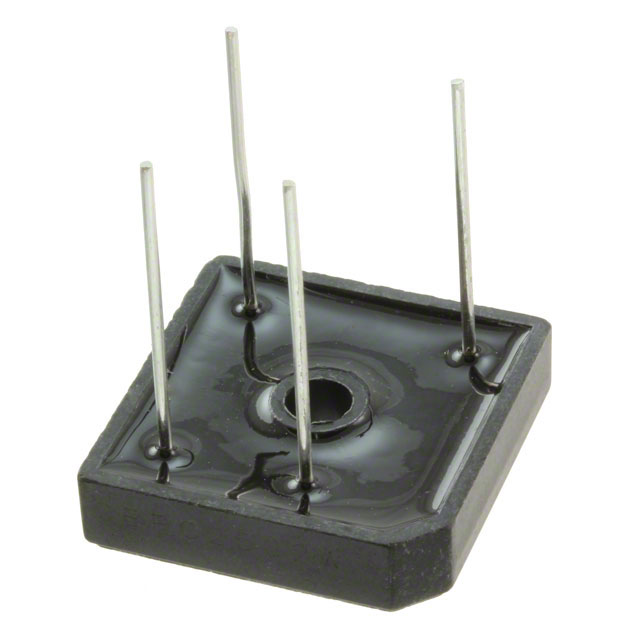

GBPC1506W

Active

GeneSiC Semiconductor

BRIDGE RECT 1P 600V 15A GBPC-W

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

BRIDGE RECT 1P 600V 15A GBPC-W

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC1506W

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	GBPC-W, 4-Square
Supplier Device Package	GBPC-W
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Technology	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type
GeneSiC Semiconductor GBPC1506W	Standard	600 V	GBPC-W	1.1 V	15 A	-55 °C	150 °C	Single Phase	4-Square GBPC-W	5 µA	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole GBPC-W
