VT5202-M3/4W

Active

Vishay General Semiconductor - Diodes Division

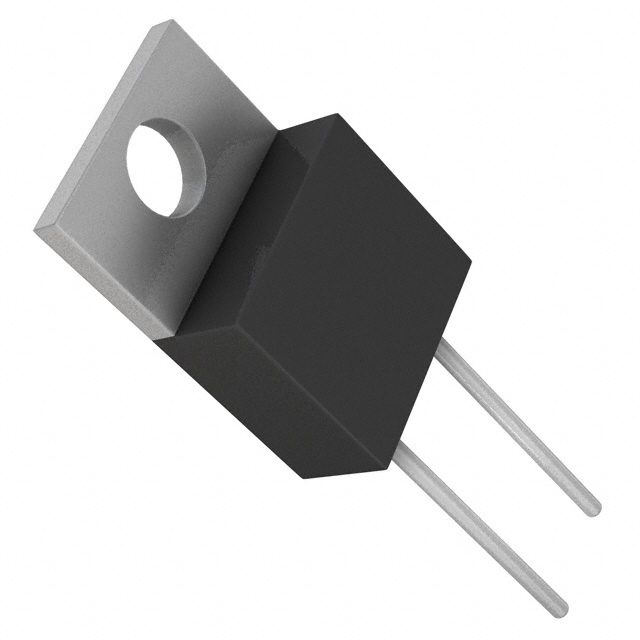

DIODE SCHOTTKY 200V 5A TO220AC

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 200V 5A TO220AC

Technical Specifications

Parameters and characteristics for this part

Specification	VT5202-M3/4W

Capacitance @ Vr, F	1216 pF
Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	150 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-220-2
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AC
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	880 mV

Part	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Technology	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division VT5202-M3/4W	TO-220-2	150 µA	880 mV	TO-220AC	1216 pF	200 V	Through Hole	200 mA 500 ns	-40 °C	175 ░C	Schottky	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	8000	$ 0.27

General part information

Diode 200 V 5A Through Hole TO-220AC
