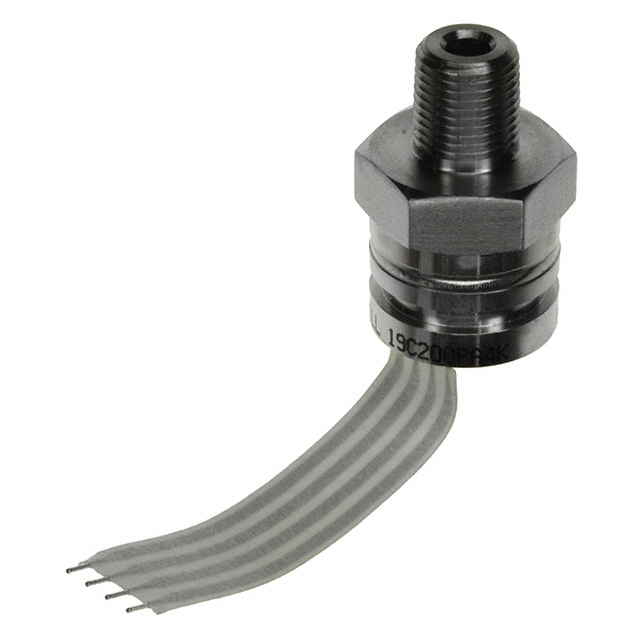

19C200PA4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 200PSIA 1/8"NPT 0.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

19C200PA4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 200PSIA 1/8"NPT 0.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19C200PA4K

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure	600 PSI
Maximum Pressure	4136.85 kPa
Operating Pressure	1378.95 kPa
Operating Pressure	200 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	100 mV
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	Cylinder, Threaded
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Termination Style	Flex Cable
Voltage - Supply	15 V

19C200 Series

Part	Output [Max]	Accuracy	Output Type	Termination Style	Package / Case	Port Style	Maximum Pressure	Maximum Pressure	Features	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Port Size	Port Size	Pressure Type	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Applications
Honeywell Sensing and Productivity Solutions 19C200PA2L	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder	No Port	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions 19C200PA7K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C	15 V	BSPP Male	6.35 mm
Honeywell Sensing and Productivity Solutions 19C200PG6K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C	15 V	Male UNF	0.4375 " 11.11 mm	Vented Gauge
Honeywell Sensing and Productivity Solutions 19C200PV4K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded			Temperature Compensated	-1378.95 kPa	-200 PSI	125 °C	-40 °C	15 V	Male	3.18 mm	Vacuum	0.125 "	-600 PSI	-4136.85 kPa
Honeywell Sensing and Productivity Solutions 19C200PA5K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C	15 V							NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions 19C200PG2K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder	No Port	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C	15 V			Vented Gauge
Honeywell Sensing and Productivity Solutions 19C200PG5L	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C				Vented Gauge				NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions 19C200PV5L	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded			Temperature Compensated	-1378.95 kPa	-200 PSI	125 °C	-40 °C				Vacuum		-600 PSI	-4136.85 kPa	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions 19C200PG5K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C	15 V			Vented Gauge				NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions 19C200PA4K	100 mV	0.25 %	Analog Voltage	Flex Cable	Cylinder Threaded	Threaded	600 PSI	4136.85 kPa	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 °C	15 V	Male	3.18 mm		0.125 "							Board Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 300.97
		5	$ 298.08

Description

General part information

19C200 Series

Pressure Sensor 200PSI (1378.95kPa) Absolute Male - 1/8" (3.18mm) NPT 0 mV ~ 100 mV (10V) Cylinder, Threaded
