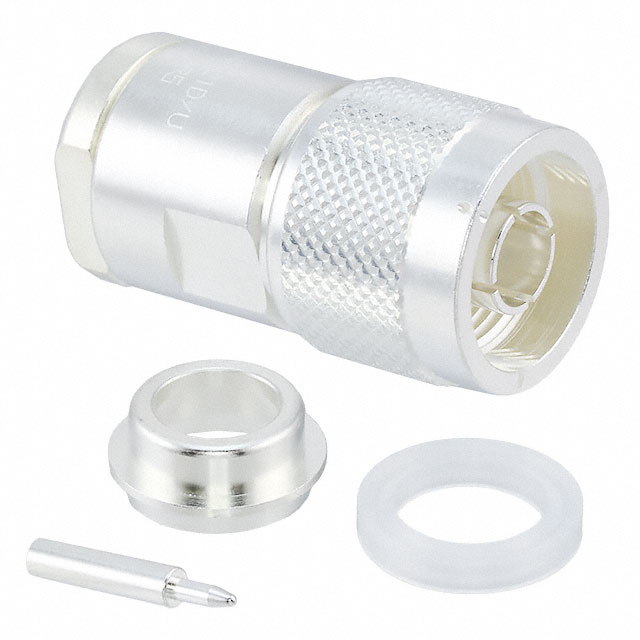

UG-21D/U(40)

Obsolete

Hirose Electric USA, Inc.

CONN N PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN N PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	UG-21D/U(40)

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

Part	Connector Type	Dielectric Material	Center Contact Plating	Connector Style	Contact Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mating Cycles	Body Finish	Frequency - Max [Max]	Center Contact Material	Cable Group	Impedance	Shield Termination	Housing Color	Body Material
Hirose Electric USA, Inc. UG-21D/U(47)	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	N Type	Solder	1	-30 ░C	60 °C	Free Hanging (In-Line)	500	Nickel	10 GHz	Brass	9 RG-8	50 Ohms	Clamp	Silver	Brass
Hirose Electric USA, Inc. UG-21D/U(40)	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	N Type	Solder	1	-30 ░C	60 °C	Free Hanging (In-Line)	1000	Silver	2 GHz	Brass		50 Ohms	Clamp	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
