S2S3AD0F

Unknown

SHARP/Socle Technology

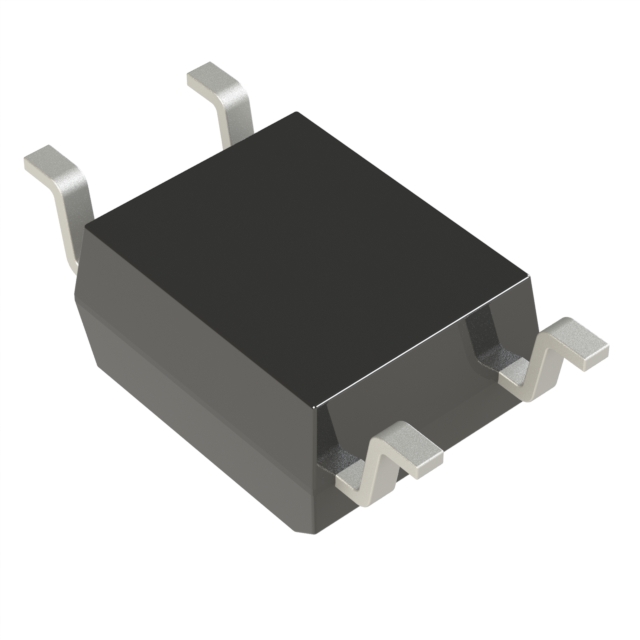

OPTOISOLATOR 3.75KV TRIAC 4SMD

Search across all available documentation for this part.

Unknown

SHARP/Socle Technology

OPTOISOLATOR 3.75KV TRIAC 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	S2S3AD0F

Approval Agency	CSA, UL
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	50 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Triac
Package / Case	4-SMD, Gull Wing
Static dV/dt (Min) [Min]	100 V/µs
Supplier Device Package	4-Mini-Flat
Turn On Time	100 µs
Voltage - Isolation	3750 Vrms
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Approval Agency	Number of Channels	Voltage - Isolation	Package / Case	Current - On State (It (RMS)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Off State	Current - DC Forward (If) (Max)	Mounting Type	Current - Hold (Ih)	Turn On Time	Supplier Device Package	Static dV/dt (Min) [Min]	Current - LED Trigger (Ift) (Max) [Max]
SHARP/Socle Technology S2S3000F	CSA UR	1	3750 Vrms	4-SMD Gull Wing	50 mA	100 °C	-30 ░C	Triac	600 V	50 mA	Surface Mount	3.5 mA	100 µs	4-Mini-Flat	100 V/µs	10 mA
SHARP/Socle Technology S2S3AD0F	CSA UL	1	3750 Vrms	4-SMD Gull Wing	50 mA	100 °C	-30 ░C	Triac	600 V	50 mA	Surface Mount	3.5 mA	100 µs	4-Mini-Flat	100 V/µs	10 mA
SHARP/Socle Technology S2S3A00F	CSA UR	1	3750 Vrms	4-SMD	50 mA	100 °C	-30 ░C	Triac	600 V	50 mA	Surface Mount	3.5 mA	100 µs	4-SMD	100 V/µs	10 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 0.42

General part information

Optoisolator Triac Output 3750Vrms 1 Channel 4-Mini-Flat

Technical documentation and resources
