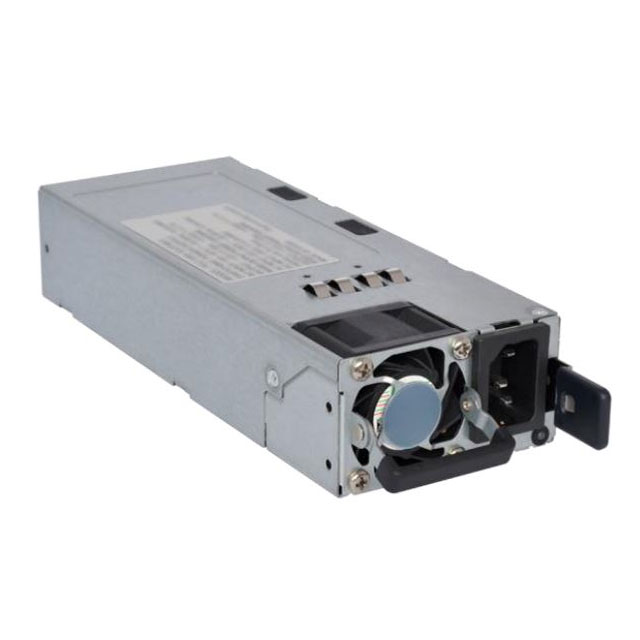

PEC1600-12-074NA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 1584W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 1584W

Technical Specifications

Parameters and characteristics for this part

Specification	PEC1600-12-074NA

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	132 A
Efficiency	94 %
Features	Universal Input, Load Sharing, Standby Output, Adjustable Output, Remote Sense
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	1584 W
Size / Dimension [x]	185 mm
Size / Dimension [x]	7.28 in
Size / Dimension [y]	73.5 mm
Size / Dimension [y]	2.89 in
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	60950-1, 62368-1
Type	Front End
Voltage - Input [Max]	264 VAC, 300 VDC
Voltage - Input [Min]	90 VAC, 180 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Power (Watts)	Voltage - Output 1	Applications	Features	Mounting Type	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Approval Agency	Voltage - Isolation	Current - Output 1
EOS Power India Private Ltd PEC1600-12-074NA	1	1584 W	12 V	ITE (Commercial)	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Rack Mount	60950-1 62368-1	264 VAC 300 VDC	90 VAC 180 V	Front End	1.57 "	73.5 mm	185 mm	2.89 in	7.28 in	40 mm	94 %	CE	3000 V	132 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC, 180 ~ 300 VDC Input
