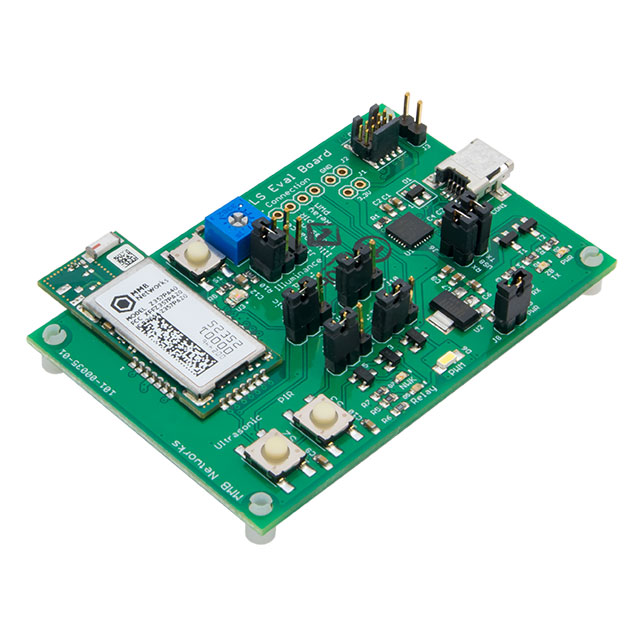

Z357PA40-EV1

Active

MMB Networks

ZIGBEE LIGHTING AND SENSOR KIT

Search across all available documentation for this part.

Active

MMB Networks

ZIGBEE LIGHTING AND SENSOR KIT

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Power - Output	RF Family/Standard	Serial Interfaces	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size [custom]	Memory Size [custom]	Frequency [Max]	Frequency [Min]	Protocol	Antenna Type	Voltage - Supply	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Mounting Type	Sensitivity	Frequency	Supplied Contents	Type
MMB Networks Z357PA40-UFL-P-NC-N	21-SMD Module	20 dBm	802.15.4	I2C SPI UART	EM357	85 °C	-40 °C	12 kB	192 kB	2.5 GHz	2.4 GHz	Zigbee®	Integrated Chip	3.3 V	235 mA	175 mA	32 mA	Surface Mount	-106 dBm
MMB Networks Z357PA40-EV1																				2.4 GHz	Board(s)	802.15.4 (ZigBee®) Transceiver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	26	$ 99.74

General part information

- Transceiver; 802.15.4 (ZigBee®) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available
