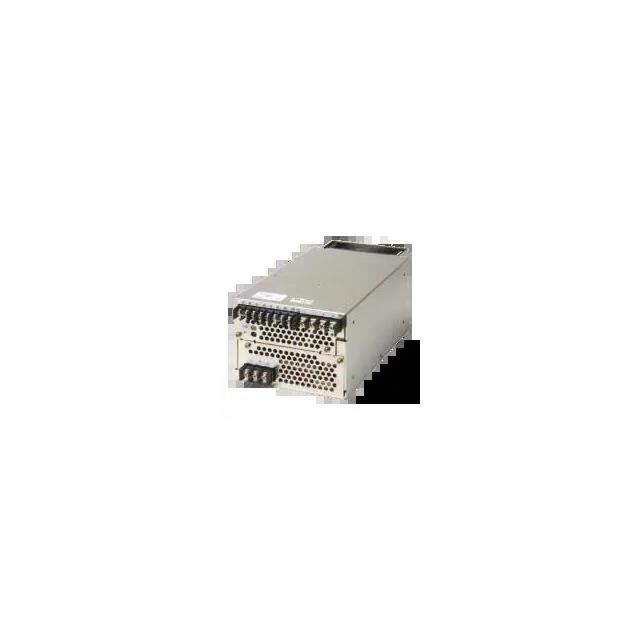

RKE48-32R
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 48V 1536W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RKE48-32R
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 48V 1536W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RKE48-32R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 32 A |
| Efficiency | 88 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.536 kW |
| Size / Dimension [x] | 237 mm |
| Size / Dimension [x] | 9.33 " |
| Size / Dimension [y] | 4.72 in |
| Size / Dimension [y] | 120 mm |
| Size / Dimension [z] | 3.62 " |
| Size / Dimension [z] | 92 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RKE48 Series
Enclosed AC DC Converters 1 Output 48V 85 ~ 265 VAC Input
