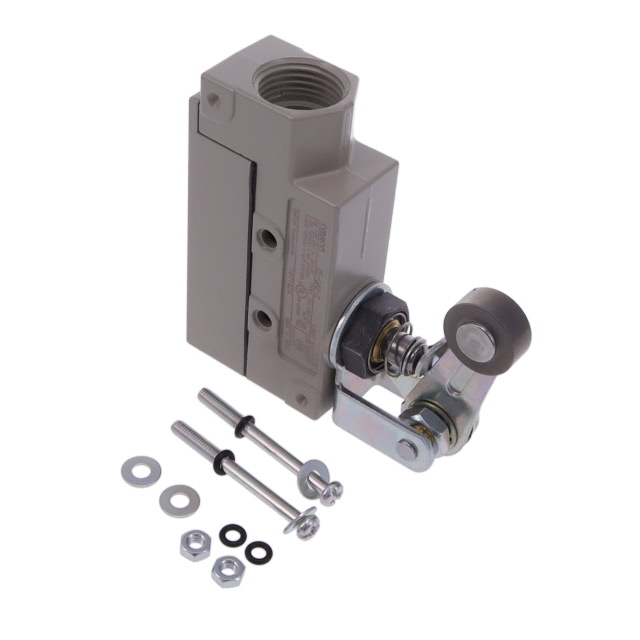

ZE-QA2-2
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
ZE-QA2-2
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZE-QA2-2 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA, 15 A |
| Differential Travel | 0.016 " |
| Differential Travel | 0.4 mm |
| Electrical Life | 500000 Cycles |
| Ingress Protection | IP60 |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 570 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 0.235 in |
| Overtravel | 6 mm |
| Pretravel | 4 mm |
| Pretravel | 0.157 in |
| Release Force | 170 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.12 | |
| 10 | $ 79.73 | |||
| 25 | $ 72.90 | |||
| 50 | $ 68.34 | |||
| 100 | $ 64.93 | |||
Description
General part information
ZE-QA2 Series
Switch SPDT Chassis Mount
