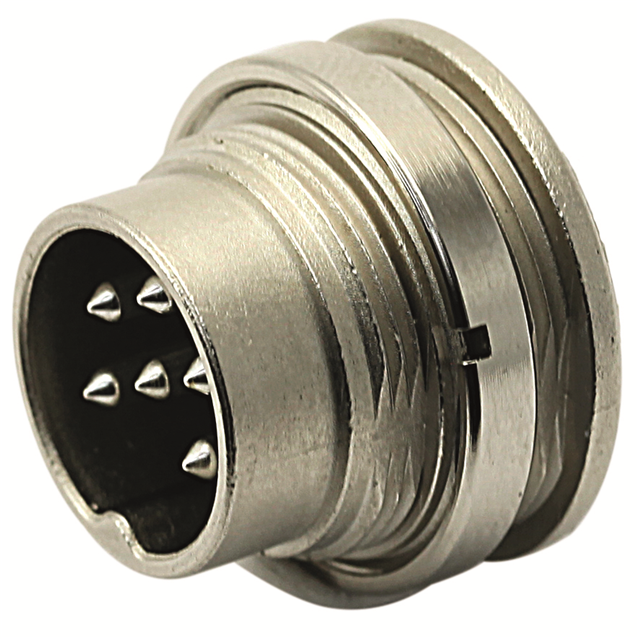

T 3506 150
ActiveAmphenol Sine Systems Corp
REAR MOUNTING MALE RECEPTACLE WI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3506 150 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1.5 mm |
| Contact Type | Crimp |
| Housing Color | Silver |
| Includes | 1 Nut, 1 Connector |
| Ingress Protection | IP40 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-8 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.85 | |
| 10 | $ 8.87 | |||
| 25 | $ 8.35 | |||
| 50 | $ 8.14 | |||
| 100 | $ 7.92 | |||
| 300 | $ 7.07 | |||
| 500 | $ 6.64 | |||
| 1000 | $ 5.87 | |||
Description
General part information
T 3506 Series
8 Position Circular Connector Receptacle Housing Panel Mount
