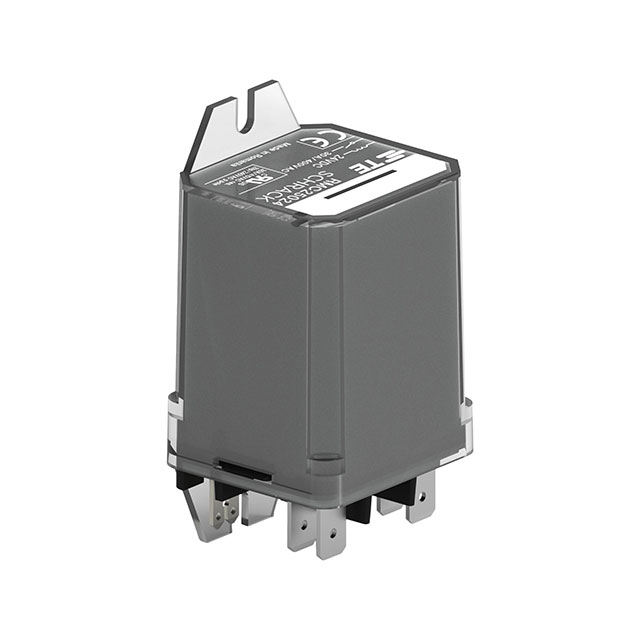

5-1415546-6
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
5-1415546-6
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 30A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1415546-6 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 50 mA |
| Coil Insulation | Class B |
| Coil Resistance | 475 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (DB/DM) (1 Form Z) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 13200 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 440 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RMC250 Series
General Purpose Relay SPDT (DB/DM) (1 Form Z) 24VDC Coil Chassis Mount
