FLS014N19SHEC03

Active

Amphenol Sine Systems Corp

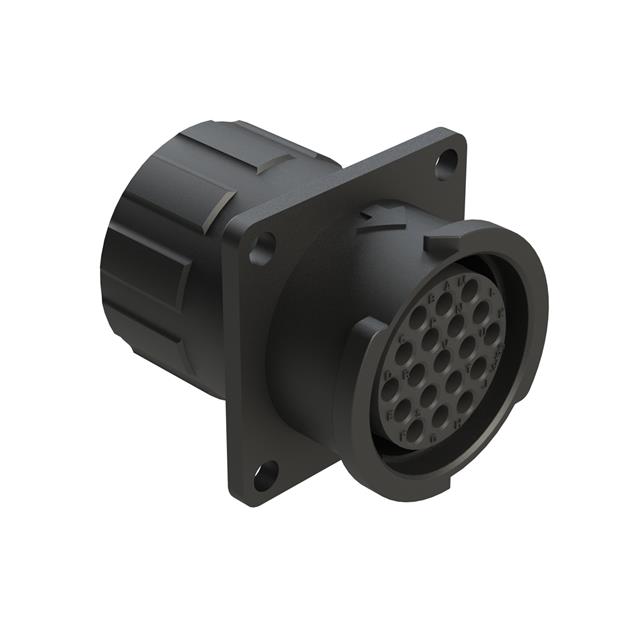

19 POSITION SQUARE FLANGE RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLS014N19SHEC03

Active

Amphenol Sine Systems Corp

19 POSITION SQUARE FLANGE RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLS014N19SHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cap (Cover)
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Type	For Female Sockets

FLS014N Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Size	Orientation	Mounting Feature	Fastening Type	Shell Size - Insert	Ingress Protection	Primary Material	Type	Insert Material	Contact Shape	Contact Type	Shielding	Note	Housing Color	Material Flammability Rating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Number of Positions	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Sine Systems Corp FLS014N3P03	125 °C	-40 °C	Receptacle Housing	8	N	Flange	Bayonet Lock	14-3	IP67 IP68 IP69K	Plastic	For Male Pins	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0
Amphenol Sine Systems Corp FLS014N19PHEC03	125 °C	-40 °C	Receptacle Housing	20	N	Flange	Bayonet Lock		IP67 IP68 IP69K	Plastic	For Male Pins	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0	19	14	19	Cap (Cover)
Amphenol Sine Systems Corp FLS014N4S03	125 °C	-40 °C	Receptacle Housing	12	N	Flange	Bayonet Lock		IP67 IP68 IP69K	Plastic	For Female Sockets	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0			4		4	14
Amphenol Sine Systems Corp FLS014N7S03-PM	125 °C	-40 °C	Receptacle Housing	16	N	Flange	Bayonet Lock		IP67 IP68 IP69K	Plastic	For Female Sockets	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0			7		7	14
Amphenol Sine Systems Corp FLS014N12S03-PM	125 °C	-40 °C	Receptacle Housing	16	N	Flange	Bayonet Lock	14-12	IP67 IP68 IP69K	Plastic	For Female Sockets	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0			12
Amphenol Sine Systems Corp FLS014N19SHEC03	125 °C	-40 °C	Receptacle Housing	20	N	Flange	Bayonet Lock		IP67 IP68 IP69K	Plastic	For Female Sockets	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0	19	14	19	Cap (Cover)
Amphenol Sine Systems Corp FLS014N12S03	125 °C	-40 °C	Receptacle Housing	16	N	Flange	Bayonet Lock	14-12	IP67 IP68 IP69K	Plastic	For Female Sockets	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0			12
Amphenol Sine Systems Corp FLS014N12SHEC03	125 °C	-40 °C	Receptacle Housing	16	N	Flange	Bayonet Lock	14-12	IP67 IP68 IP69K	Plastic	For Female Sockets	Thermoplastic	Circular	Crimp	Unshielded	Contacts Not Included	Black	UL94 V-0			12	Cap (Cover)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.16
		10	$ 14.87
		25	$ 14.09
		50	$ 13.89
		100	$ 12.26
		250	$ 11.44
		500	$ 11.19

Description

General part information

FLS014N Series

19 Position Circular Connector Receptacle Housing Panel Mount Cap (Cover)
