903-285P-51S

Active

Amphenol RF

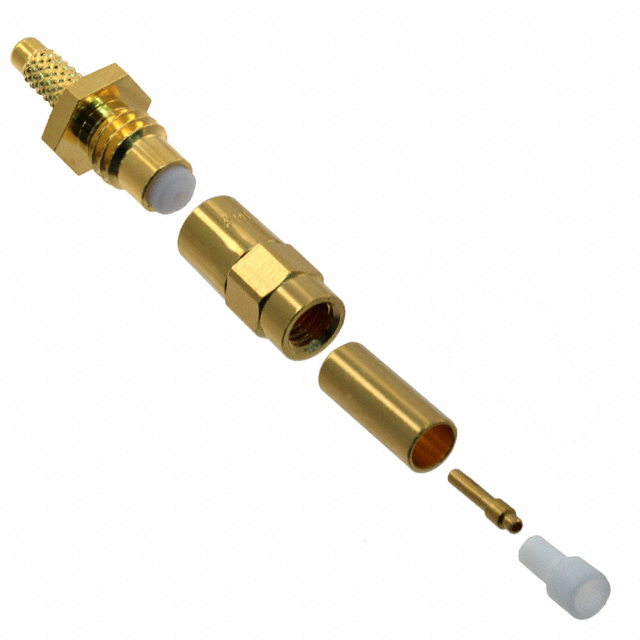

CONN SMB PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-285P-51S

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Shield Termination	Insertion Loss	Body Finish	Impedance	Frequency - Max [Max]	Center Contact Material	Connector Type	Connector Style	Housing Color	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Number of Ports	Center Contact Plating	Includes	Cable Group	Mounting Type	Contact Termination	Fastening Type
Amphenol RF 903-285P-51S	Crimp	0.3 dB	Gold	50 Ohms	4 GHz	Beryllium Copper	Female Socket Plug	SMB	Gold	Polytetrafluoroethylene (PTFE)	500	-40 °C	155 °C	Brass	1	Gold	1 Connector 1 Contact 1 Ferrule 1 Insulator	188 316 RG-174	Free Hanging (In-Line)	Solder	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
