1411170

Active

Phoenix Contact

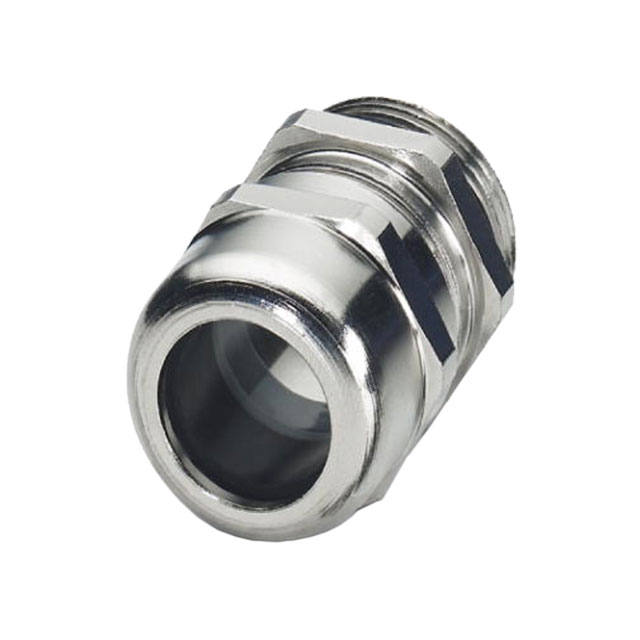

CABLE GLAND 3-6.5MM PG7 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6.5MM PG7 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1411170

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG7
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material	Thread Size	Ingress Protection	Includes	Thread Length	Thread Length
Phoenix Contact 1424495	3 mm	0.118 in	Cable Gland	0.256 "	6.5 mm	100 °C	-40 °C	Black	Polyamide (PA) Nylon	PG7	IP68 - Dust Tight Waterproof	Seal	8 mm	0.315 in
Phoenix Contact 1411170	3 mm	0.118 in	Cable Gland	0.256 "	6.5 mm	100 °C	-40 °C	Silver	Brass Nickel Plated	PG7	IP66 IP68 IP69	O-Ring Seal	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG7 Silver
