0191460096

Active

Molex

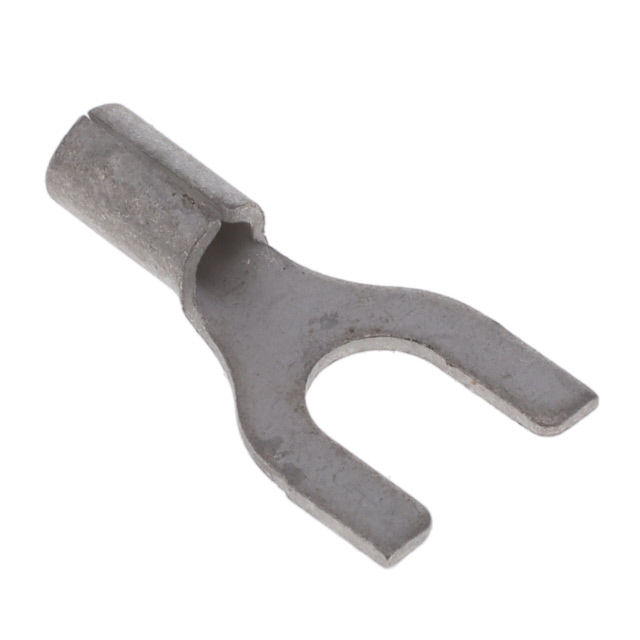

CONN SPADE TERM 14-16AWG #10

Search across all available documentation for this part.

Active

Molex

CONN SPADE TERM 14-16AWG #10

Technical Specifications

Parameters and characteristics for this part

Specification	0191460096

Contact Finish	Electro-Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall	0.77 in
Length - Overall	19.56 mm
Length - Ring Center to Termination [x]	0.269 in
Length - Ring Center to Termination [x]	6.83 mm
Length - Termination [custom]	0.245 in
Length - Termination [custom]	6.22 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges [x]	0.388 in
Width - Outer Edges [x]	9.86 mm

Part	Insulation	Mounting Type	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Length - Overall	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Material	Length - Termination [custom]	Length - Termination [custom]	Contact Finish	Terminal Type
Molex 0191460096	Non-Insulated	Free Hanging (In-Line)	Crimp	0.388 in	9.86 mm	0.77 in	19.56 mm	10 Stud	0.269 in	6.83 mm	Brazed Seam	5.03 mm	0.198 in	Copper	0.245 in	6.22 mm	Electro-Tin	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Stud Spade Terminal Connector Crimp 14-16 AWG
