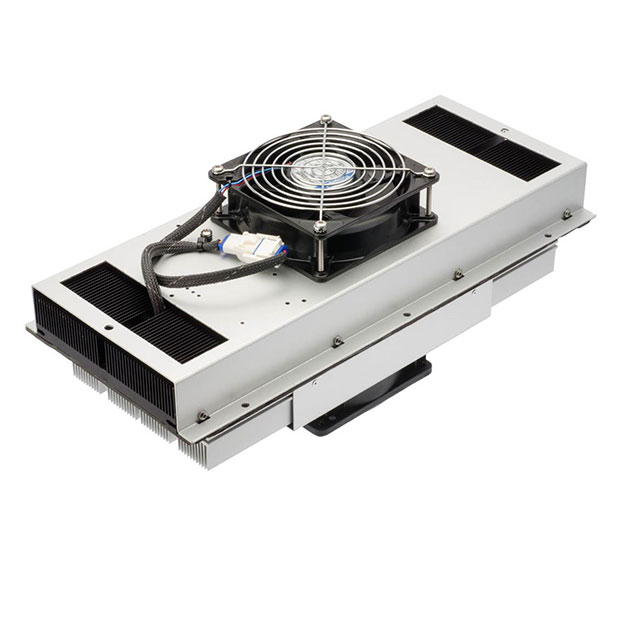

AA-200-48-44-00-XX
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 193W
Deep-Dive with AI
Search across all available documentation for this part.
AA-200-48-44-00-XX
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 193W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA-200-48-44-00-XX |
|---|---|
| Current | 5.6 A |
| Dimensions - Overall [x] | 400 mm |
| Dimensions - Overall [y] | 180 mm |
| Dimensions - Overall [z] | 178 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Cooling | 193 W |
| Voltage | 48 V |
| Weight | 15 lbs |
| Weight | 6.8 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 971.11 | |
Description
General part information
AA-200-48 Series
Air to Air Thermoelectric Assembly 193 W
