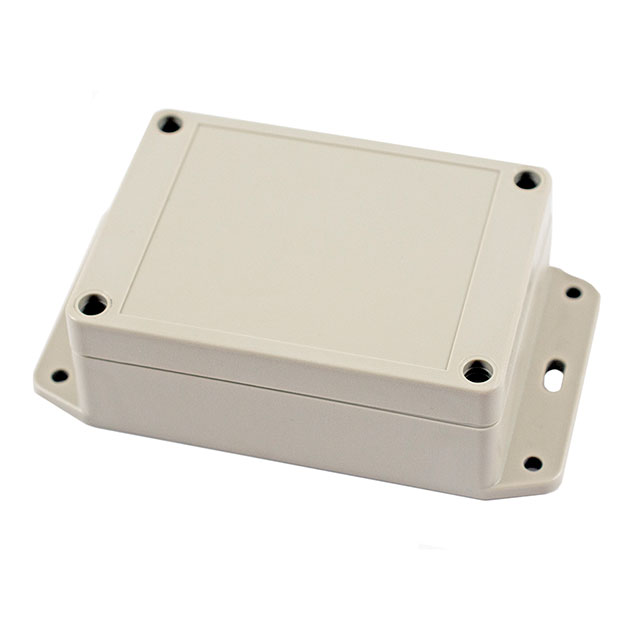

RP1085BF
ActiveHammond Manufacturing
BOX ABS GRAY 5.13"L X 3.01"W
Deep-Dive with AI
Search across all available documentation for this part.
RP1085BF
ActiveHammond Manufacturing
BOX ABS GRAY 5.13"L X 3.01"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP1085BF |
|---|---|
| Area (L x W) | 15.5 in² |
| Area (L x W) | 100 cm² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 1.575 in |
| Height [z] | 40 mm |
| Material | ABS |
| Material Flammability Rating | UL94 V-2 |
| Size / Dimension [x] | 5.13 in |
| Size / Dimension [x] | 130.3 mm |
| Size / Dimension [y] | 3.01 in |
| Size / Dimension [y] | 76.45 mm |
| Thickness [z] | 2.79 mm |
| Thickness [z] | 0.11 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.70 | |
| 5 | $ 11.38 | |||
| 10 | $ 11.06 | |||
| 25 | $ 10.43 | |||
| 50 | $ 10.12 | |||
| 100 | $ 9.48 | |||
| 250 | $ 8.85 | |||
| 500 | $ 8.54 | |||
| 1000 | $ 8.22 | |||
Description
General part information
RP1085 Series
Box ABS Gray Cover Included 5.130" L x 3.010" W (130.30mm x 76.45mm) X 1.575" (40.00mm)
Documents
Technical documentation and resources
No documents available
