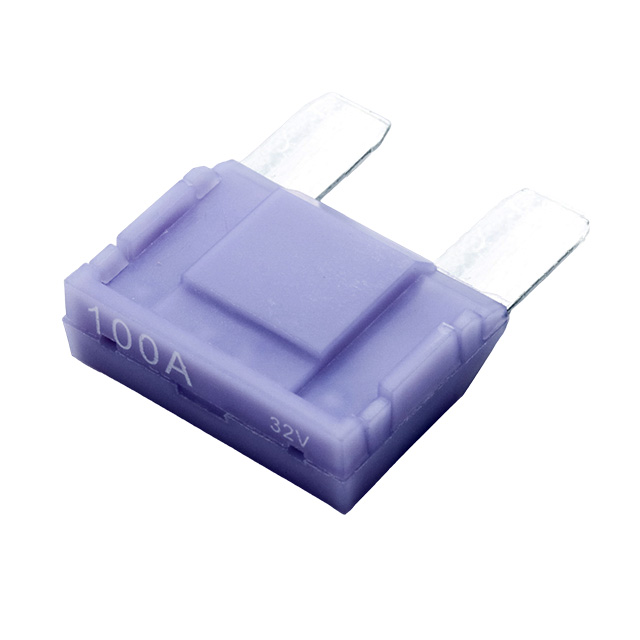

ANX-I-100A
ActiveOptiFuse
FUSE AUTO 100A 32VDC BLADE MAX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANX-I-100A
ActiveOptiFuse
FUSE AUTO 100A 32VDC BLADE MAX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANX-I-100A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Violet |
| Current Rating (Amps) | 100 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Max |
| Response Time | Fast Blow |
| Size / Dimension [x] | 1.142 inches |
| Size / Dimension [x] | 29 mm |
| Size / Dimension [y] | 0.35 " |
| Size / Dimension [y] | 8.9 mm |
| Size / Dimension [z] | 0.85 " |
| Size / Dimension [z] | 21.6 mm |
| Voltage Rating - DC | 32 V |
ANX-I Series
| Part | Package / Case | Color | Fuse Type | Response Time | Breaking Capacity @ Rated Voltage | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - DC | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | Blade Max | Yellow | Automotive | Fast Blow | 1 kA | ISO SAE | 0.85 " | 21.6 mm | 0.35 " | 1.142 inches | 29 mm | 8.9 mm | 32 V | 20 A | Requires Holder |
OptiFuse | Blade Max | Red | Automotive | Fast Blow | 1 kA | ISO SAE | 0.85 " | 21.6 mm | 0.35 " | 1.142 inches | 29 mm | 8.9 mm | 32 V | 50 A | Requires Holder |
OptiFuse | Blade Max | Blue | Automotive | Fast Blow | 1 kA | ISO SAE | 0.85 " | 21.6 mm | 0.35 " | 1.142 inches | 29 mm | 8.9 mm | 32 V | 60 A | Requires Holder |
OptiFuse | Blade Max | Clear | Automotive | Fast Blow | 1 kA | ISO SAE | 0.85 " | 21.6 mm | 0.35 " | 1.142 inches | 29 mm | 8.9 mm | 32 V | 80 A | Requires Holder |
OptiFuse | Blade Max | Violet | Automotive | Fast Blow | 1 kA | ISO SAE | 0.85 " | 21.6 mm | 0.35 " | 1.142 inches | 29 mm | 8.9 mm | 32 V | 100 A | Requires Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.99 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.72 | |||
| 50 | $ 3.98 | |||
| 100 | $ 3.26 | |||
| 250 | $ 2.95 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.15 | |||
Description
General part information
ANX-I Series
100 A AC 32 V DC Fuse Automotive Requires Holder Blade, Max
