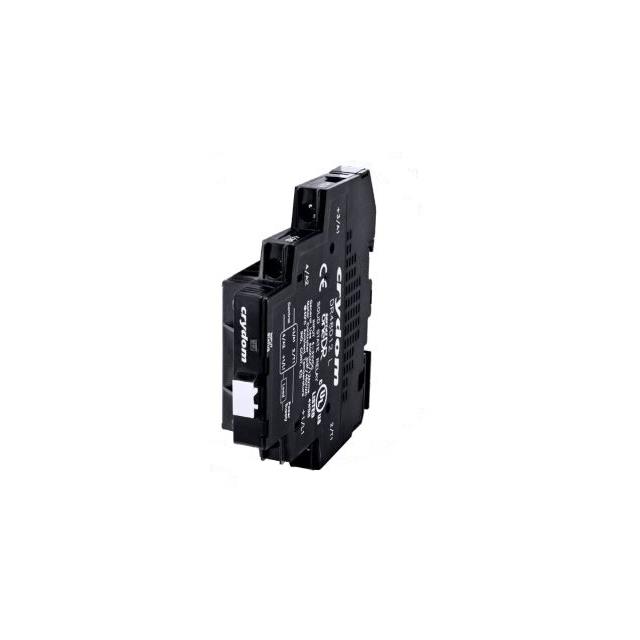

DR24A12R
ActiveSensata-Crydom
SSR RELAY SPST-NO 12A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
DR24A12R
ActiveSensata-Crydom
SSR RELAY SPST-NO 12A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DR24A12R |
|---|---|
| Approval Agency | cULus, CE |
| Load Current | 12 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 208 VAC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 75.89 | |
Description
General part information
DR24A12 Series
Solid State SPST-NO (1 Form A) Module
