Q-3G026000M003M
ActiveAmphenol Custom Cable

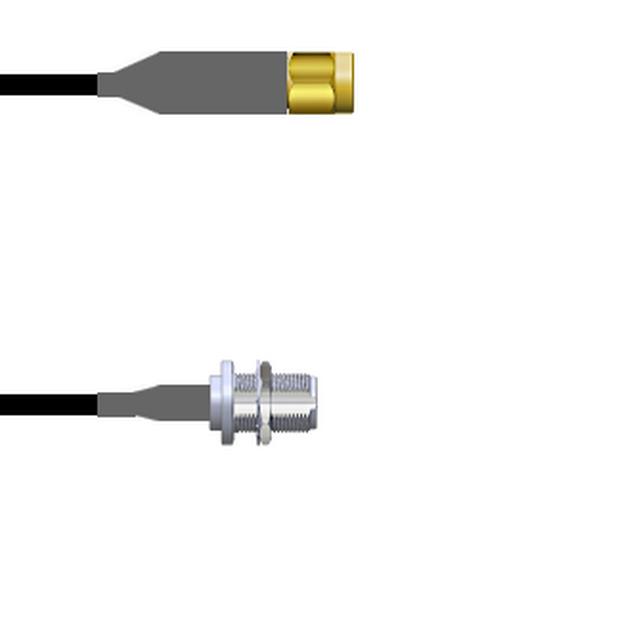

CBL ASSY SMA-NTYPE PLG-JACK 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3G026000M003M
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE PLG-JACK 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3G026000M003M |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 143.53 | |
| 25 | $ 133.83 | |||
| 50 | $ 124.13 | |||
| 100 | $ 115.82 | |||
| 250 | $ 108.89 | |||
Description
General part information
Q-3G0260 Series
Cable Assembly Coaxial SMA to N-Type LMR 240 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
