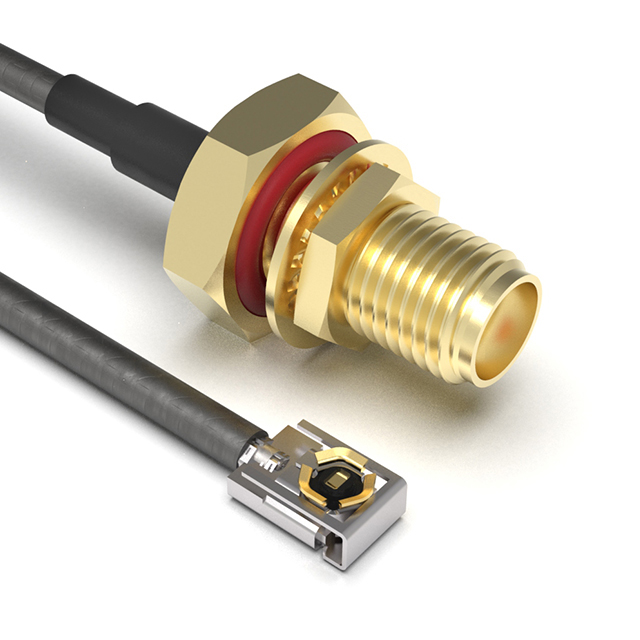

CABLE 319 RF-200-A-1
ActiveGCT
CBL ASSY MHF1 LK-SMA J-PL 7.874"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 319 RF-200-A-1
ActiveGCT
CBL ASSY MHF1 LK-SMA J-PL 7.874"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 319 RF-200-A-1 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHFI LK (Locking) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 LK to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.31 | |
| 10 | $ 12.68 | |||
| 25 | $ 12.20 | |||
| 50 | $ 11.71 | |||
| 100 | $ 11.06 | |||
| 250 | $ 10.08 | |||
| 500 | $ 9.43 | |||
| 1000 | $ 8.65 | |||
Description
General part information
CABLE 319 Series
Cable Assembly Coaxial IPEX MHF1 LK to SMA 1.37mm OD Coaxial Cable 7.874" (200.00mm)
