5435-1-05-34-00-00-03-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .018DIA GOLD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .018DIA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	5435-1-05-34-00-00-03-0

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Brass Alloy
Insulation	Non-Insulated
Length - Above Flange [x]	0.14 in
Length - Above Flange [x]	3.56 mm
Mounting Hole Diameter [diameter]	0.022 in
Mounting Hole Diameter [diameter]	0.56 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.46 mm
Pin Size - Above Flange [diameter]	0.018 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Press-Fit, Square

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Termination	Length - Above Flange [x]	Length - Above Flange [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Terminal Type	Terminal Style
Mill-Max Manufacturing Corp. 5435-1-05-15-00-00-03-0	Gold	10 Áin	0.25 Ám	Through Hole	Brass Alloy	Press-Fit Square	0.14 in	3.56 mm	0.022 in	0.56 mm	0.46 mm	0.018 in	Non-Insulated	PC Pin	Single End
Mill-Max Manufacturing Corp. 5435-1-05-34-00-00-03-0	Gold	50 µin	1.27 µm	Through Hole	Brass Alloy	Press-Fit Square	0.14 in	3.56 mm	0.022 in	0.56 mm	0.46 mm	0.018 in	Non-Insulated	PC Pin	Single End
Mill-Max Manufacturing Corp. 5435-1-05-21-00-00-03-0	Gold	20 µin	0.51 µm	Through Hole	Brass Alloy	Press-Fit Square	0.14 in	3.56 mm	0.022 in	0.56 mm	0.46 mm	0.018 in	Non-Insulated	PC Pin	Single End

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

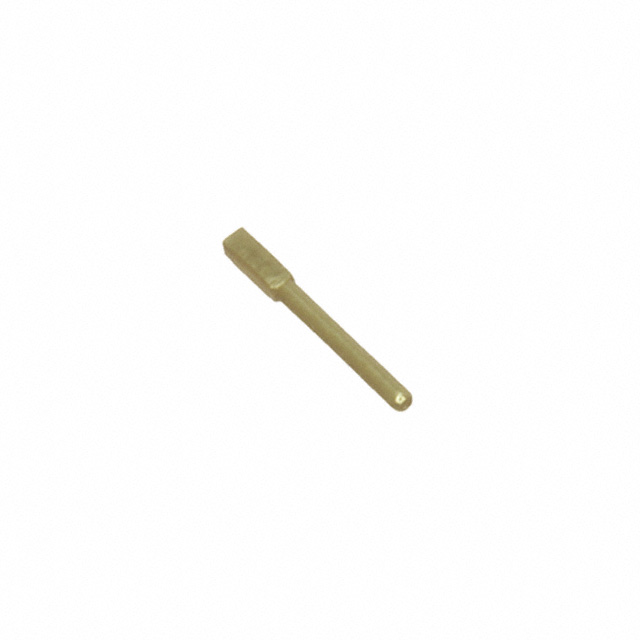

PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
