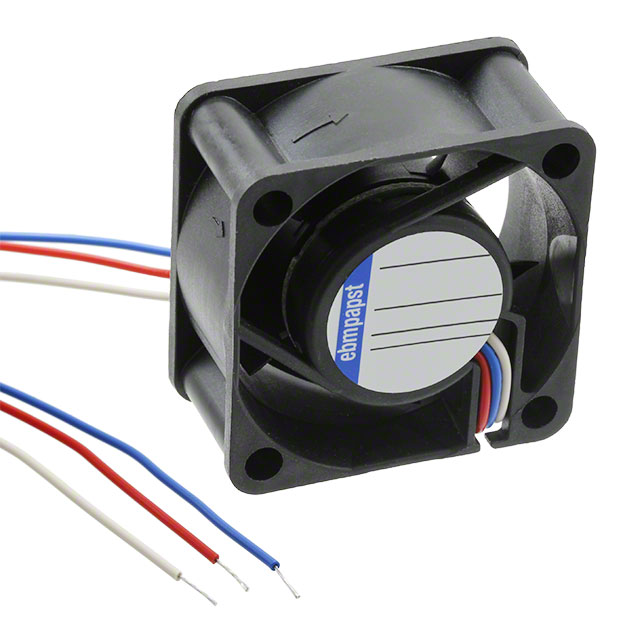

414/2H

Active

ebm-papst Inc.

FAN AXIAL 40X20MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 40X20MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	414/2H

Air Flow	0.221 mł/min
Air Flow	7.9 CFM
Approval Agency	UL, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	Varies Based on Temperature
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	29 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.7 W
RPM	8100 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.5 VDC
Voltage Range [Min]	20 VDC
Weight	0.06 lb
Weight	27.22 g
Width [y]	20 mm

Part	RPM	Bearing Type	Features	Termination	Width [y]	Fan Type	Lifetime @ Temp.	Noise	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Power (Watts)	Material - Blade	Approval Agency	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Material - Frame
ebm-papst Inc. 414/2H	8100 RPM	Sintec	Speed Sensor (Tach)	3 Wire Leads	20 mm	Tubeaxial	Varies Based on Temperature	29 dB(A)	20 VDC	26.5 VDC	0.06 lb	27.22 g	1.7 W	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	40 mm	Square	40 mm	24 VDC	60 °C	-20 °C	-20 C	60 °C	0.221 mł/min	7.9 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Sintec 7.9 CFM (0.221mł/min) 3 Wire Leads
