RT4813AGQUF
ActiveRichtek USA Inc.
IC REG BOOST ADJ 2.5A 9UQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT4813AGQUF
ActiveRichtek USA Inc.
IC REG BOOST ADJ 2.5A 9UQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT4813AGQUF |
|---|---|
| Current - Output | 2.5 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

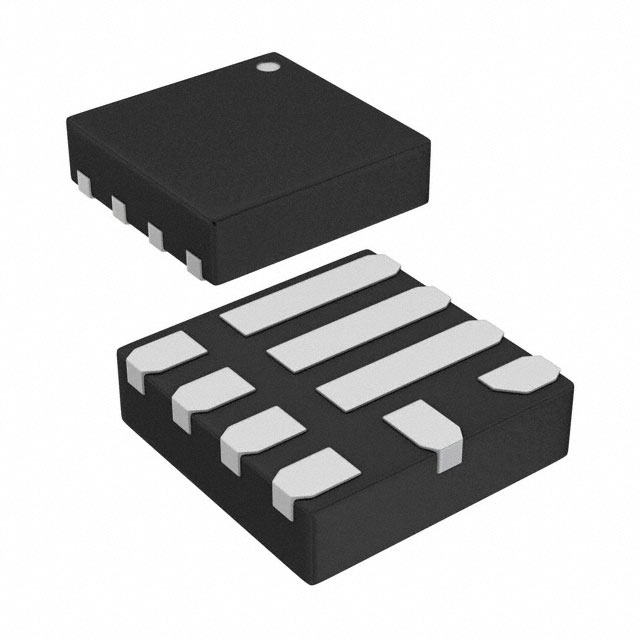

| Package / Case | 9-UFQFN |
| Supplier Device Package | 9-UQFN (2x2) |
| Synchronous Rectifier | True |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.8 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.11 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.81 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.47 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.11 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.81 | |||
| Tape & Reel (TR) | 2500 | $ 0.75 | ||
| 5000 | $ 0.72 | |||
| 12500 | $ 0.69 | |||
Description
General part information
RT4813 Series
Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 2.5A (Switch) 9-UFQFN
