BC-ATS-192818

Active

Boxco

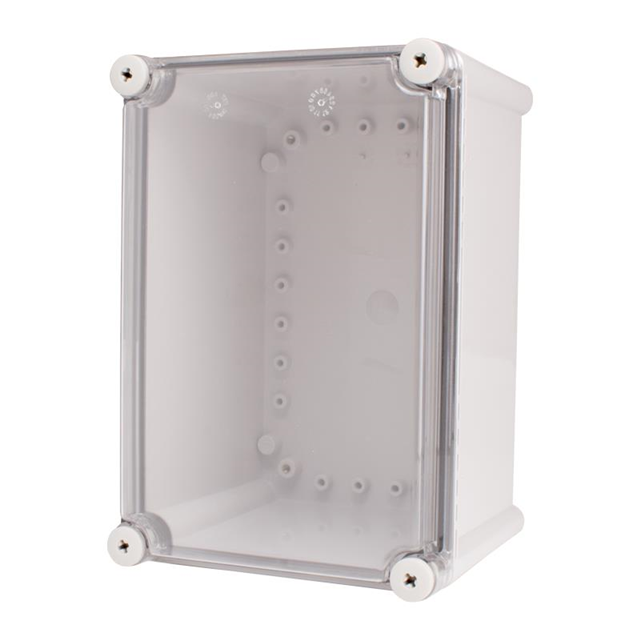

BOX ABS CLEAR 11.02"L X 7.48"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-ATS-192818

Active

Boxco

BOX ABS CLEAR 11.02"L X 7.48"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC-ATS-192818

Area (L x W)	82.5 in˛
Area (L x W)	532 cm˛
Color	Light Gray, Clear Cover
Container Type	Box
Design	Lift-Off Screw Cover
Features	Sealing Gasket, Wall Mount
Height [z]	180 mm
Height [z]	7.087 in
Material	ABS Body, Plastic, Polycarbonate Cover
Material Flammability Rating	UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension [x]	280 mm
Size / Dimension [x]	11.024 in
Size / Dimension [y]	190 mm
Size / Dimension [y]	7.48 in

BC-ATS Series

Part	Design	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Ratings	Material Flammability Rating	Color	Container Type	Area (L x W)	Area (L x W)	Features	Height [z]	Height [z]	Area (L x W)
Boxco BC-ATS-081107	Lift-Off Screw Cover	ABS Body Plastic Polycarbonate Cover	3.15 in	80 mm	4.331 in	110 mm	IP66 IP67 NEMA 4X NEMA 6 UL 508A	UL94 HB	Clear Cover Light Gray	Box	88 cm²	13.6 in˛	Sealing Gasket Wall Mount	70 mm	2.756 "
Boxco BC-ATS-283813	Lift-Off Screw Cover	ABS Body Plastic Polycarbonate Cover	11.024 "	280 mm	14.961 in	380 mm	IP66 IP67 NEMA 4X NEMA 6 UL 508A	UL94 HB	Clear Cover Light Gray	Box	1064 cm˛	165 in˛	Sealing Gasket Wall Mount	130 mm	5.118 in
Boxco BC-ATS-283818	Lift-Off Screw Cover	ABS Body Plastic Polycarbonate Cover	11.024 "	280 mm	14.961 in	380 mm	IP66 IP67 NEMA 4X NEMA 6 UL 508A	UL94 HB	Clear Cover Light Gray	Box	1064 cm˛	165 in˛	Sealing Gasket Wall Mount	180 mm	7.087 in
Boxco BC-ATS-193813	Lift-Off Screw Cover	ABS Body Plastic Polycarbonate Cover	7.48 in	190 mm	14.961 in	380 mm	IP66 IP67 NEMA 4X NEMA 6 UL 508A	UL94 HB	Clear Cover Light Gray	Box	722 cm²	112 in˛	Sealing Gasket Wall Mount	130 mm	5.118 in
Boxco BC-ATS-082508	Lift-Off Screw Cover	ABS Body Plastic Polycarbonate Cover	3.15 in	80 mm	9.843 "	250 mm	IP66 IP67 NEMA 4X NEMA 6 UL 508A	UL94 HB	Clear Cover Light Gray	Box			Sealing Gasket Wall Mount	85 mm	3.346 in
Boxco BC-ATS-192818	Lift-Off Screw Cover	ABS Body Plastic Polycarbonate Cover	7.48 in	190 mm	11.024 in	280 mm	IP66 IP67 NEMA 4X NEMA 6 UL 508A	UL94 HB	Clear Cover Light Gray	Box	82.5 in˛		Sealing Gasket Wall Mount	180 mm	7.087 in	532 cm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.05

Description

General part information

BC-ATS Series

Box Plastic, ABS Body, Polycarbonate Cover Light Gray, Clear Cover Lift-Off Screw Cover 11.024" L x 7.480" W (280.00mm x 190.00mm) X 7.087" (180.00mm)
