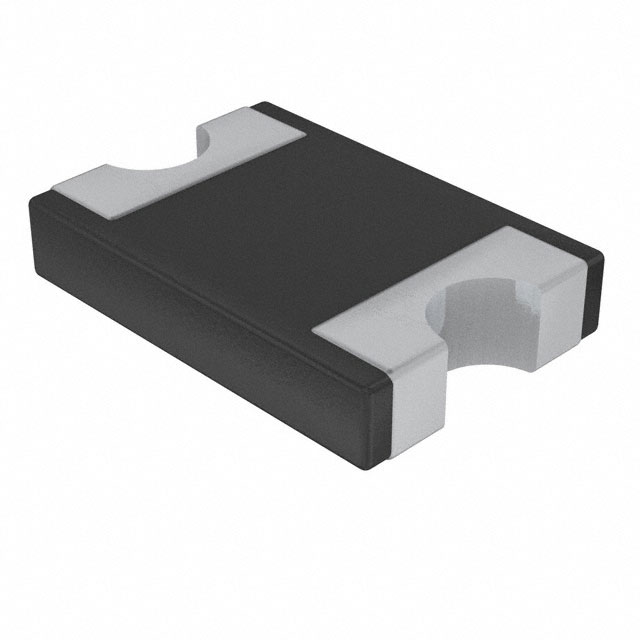

SD2114S040S8R0
ActiveKyocera AVX
DIODE SCHOTTKY 40V 8A 2114
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD2114S040S8R0
ActiveKyocera AVX
DIODE SCHOTTKY 40V 8A 2114
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD2114S040S8R0 |
|---|---|
| Current - Average Rectified (Io) | 8 A |
| Current - Reverse Leakage @ Vr | 500 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | 2-SMD, No Lead |
| Speed | 200 mA, 500 ns |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| 2000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 0.72 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| 2000 | $ 0.30 | |||
| Tape & Reel (TR) | 5000 | $ 0.27 | ||
| 10000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
| 25000 | $ 0.23 | |||
Description
General part information
SD2014S Series
Diode 40 V 8A Surface Mount 2114/DO-214AA
