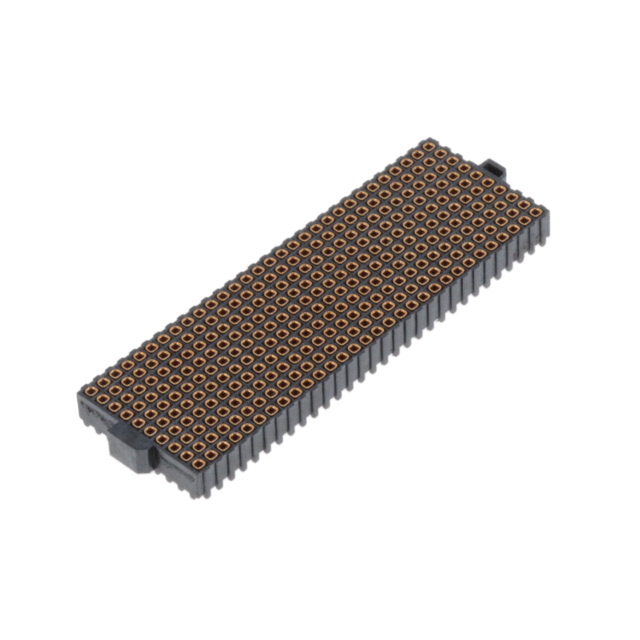

YFS-30-03-H-10-SB-K
ActiveSamtec Inc.
.050" SAMARRAY LOW PROFILE OPEN
Deep-Dive with AI
Search across all available documentation for this part.
YFS-30-03-H-10-SB-K
ActiveSamtec Inc.
.050" SAMARRAY LOW PROFILE OPEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YFS-30-03-H-10-SB-K |
|---|---|
| Connector Type | Female Sockets, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Pick and Place |
| Height Above Board [z] | 3.4 mm |
| Height Above Board [z] | 0.134 in |
| Mated Stacking Heights | 7 mm, 5 mm, 9 mm, 12 mm, 19 mm, 25 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 300 |
| Number of Rows | 10 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 76.41 | |
| 10 | $ 63.98 | |||
Description
General part information
YFS-30 Series
300 Position Connector Array, Female Sockets Surface Mount Gold
Documents
Technical documentation and resources
