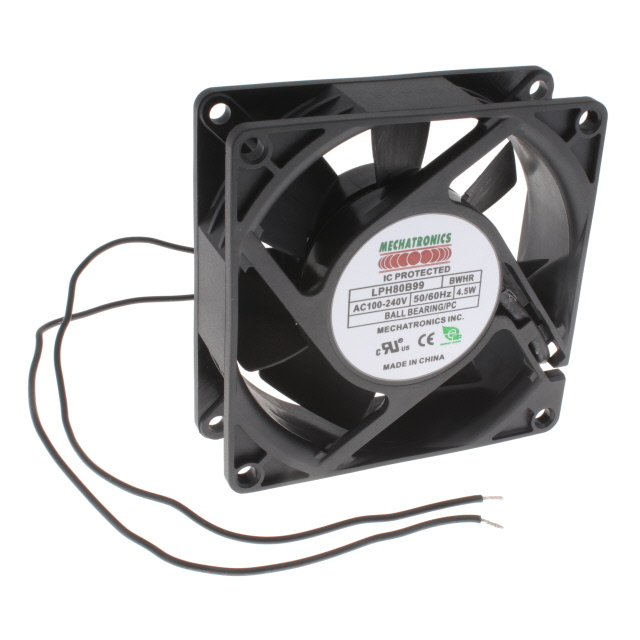

LPH80B99-BWHR-PC

Active

Mechatronics Bearing Group

EC FAN AXIAL 80 X 80 X 25MM W/PA

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

EC FAN AXIAL 80 X 80 X 25MM W/PA

Technical Specifications

Parameters and characteristics for this part

Specification	LPH80B99-BWHR-PC

Air Flow	1.09 m³/min
Air Flow	39 CFM
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Electronic Commutation (EC), Parylene Coating, Auto Restart
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Power (Watts)	4.5 W
RPM	3500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.25 in H2O
Static Pressure	62.3 Pa
Termination	2 Wire Leads
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Voltage Range [Max]	264 VAC
Voltage Range [Min]	90 VAC
Weight	94.89 g
Weight	0.209 lb
Width [x]	25.5 mm

Part	Approval Agency	Lifetime @ Temp.	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Features	Fan Type	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Noise	Static Pressure	Static Pressure	Material - Blade	Width [x]	Material - Frame	Power (Watts)	RPM	Termination	Voltage - Rated [Min]	Voltage - Rated [Max]	Ingress Protection	Weight	Weight
Mechatronics Bearing Group LPH80B99-BTMR	CE cUL TUV UL	50000 Hrs	32 CFM	0.896 m³/min	70 °C	70 °C	-40 °C	-40 °C	80 mm	80 mm	Auto Restart Electronic Commutation (EC)	Tubeaxial	Ball	90 VAC	264 VAC	50 mA	27 dB(A)	42.3 Pa	0.17 in H2O	Plastic	25.5 mm	Plastic	2.4 W	3000 RPM	2 Terminals	100 VAC	240 VAC
Mechatronics Bearing Group LPH80B99-BWHR-PC			39 CFM	1.09 m³/min					80 mm	80 mm	Auto Restart Electronic Commutation (EC) Parylene Coating	Tubeaxial	Ball	90 VAC	264 VAC	60 mA	31 dB(A)	62.3 Pa	0.25 in H2O	Plastic	25.5 mm	Plastic	4.5 W	3500 RPM	2 Wire Leads	100 VAC	240 VAC	IP55 - Dust Protected Water Resistant	94.89 g	0.209 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 80mm L x 80mm H Ball 39.0 CFM (1.09m³/min) 2 Wire Leads
