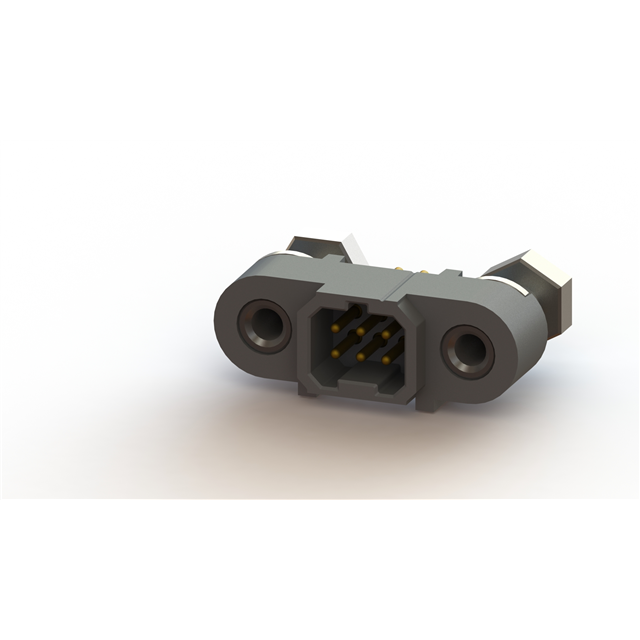

A221Y06V22

Active

Nicomatic

MALE 6POS STRAIGHT TRGH 1MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 6POS STRAIGHT TRGH 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221Y06V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.161 in
Insulation Height	4.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

Part	Pitch - Mating	Pitch - Mating	Style	Features	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Insulation Color	Material Flammability Rating	Shrouding	Termination	Number of Positions Loaded	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Insulation Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type
Nicomatic A221Y06V22	0.039 in	1 mm	Board to Board Cable	Mating Flange Mounting Flange Mounting Hardware	0.161 in	4.1 mm	Gold	Male Pin	Header	0.039 "	1 mm	2	Black	UL94 V-0	Shrouded - 4 Wall	Solder	All	Circular	-65 ░C	200 °C	600 VAC	0.15 µm	5.9 µin	2.5 A	Copper Alloy	Gold	Liquid Crystal Polymer (LCP)	6	0.15 µm	5.9 µin	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.039" (1.00mm)
