GT966007056-T3-APOE

Active

GlobTek, Inc.

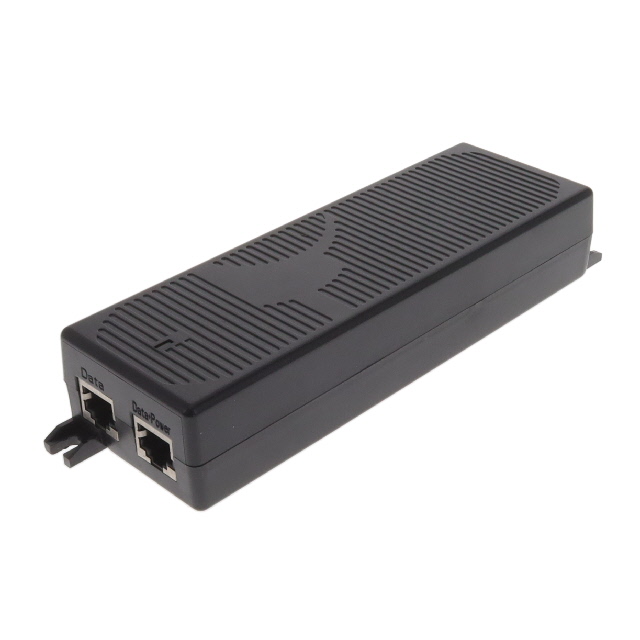

POE INJECTOR 56V 70W DESKTOP

Search across all available documentation for this part.

Active

GlobTek, Inc.

POE INJECTOR 56V 70W DESKTOP

Technical Specifications

Parameters and characteristics for this part

Specification	GT966007056-T3-APOE

Approval Agency	UKRSepro, CB, EAC, ETL, CE, S-Mark, cETLus, VCCI
Compliance	IEEE802.3af
Current - Output	1.25 A
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
Efficiency	Level VI
Features	OCP, OVP
Input Connector	IEC 320-C14
Mounting Type	Desktop
Note	AC Power Cord Sold Separately
Number of Ports	2
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	70 W
Size / Dimension [x]	6.5 in
Size / Dimension [x]	165 mm
Size / Dimension [y]	2.22 in
Size / Dimension [y]	56.5 mm
Size / Dimension [z]	32.5 mm
Size / Dimension [z]	1.28 in
Standard Number	60950-1
Type	Midspan Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

Part	Compliance	Features	Standard Number	Voltage - Output	Type	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Efficiency	Note	Mounting Type	Power (Watts) - Per Port	Input Connector	Output Connector	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency
GlobTek, Inc. GT966007056-T3-APOE	IEEE802.3af	OCP OVP	60950-1	56 V	Midspan Injector	2	-10 °C	40 °C	10 Mbps 100 Mbps 1000 Mbps	Level VI	AC Power Cord Sold Separately	Desktop	70 W	IEC 320-C14	RJ45 (Data Power)	1.25 A	90 VAC	264 VAC	2.22 in	6.5 in	32.5 mm	165 mm	56.5 mm	1.28 in	CB CE cETLus EAC ETL S-Mark UKRSepro VCCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.70

General part information

56V Power Over Ethernet (POE) 2 Port Midspan Injector 10/100/1000 Mbps Data Rate
