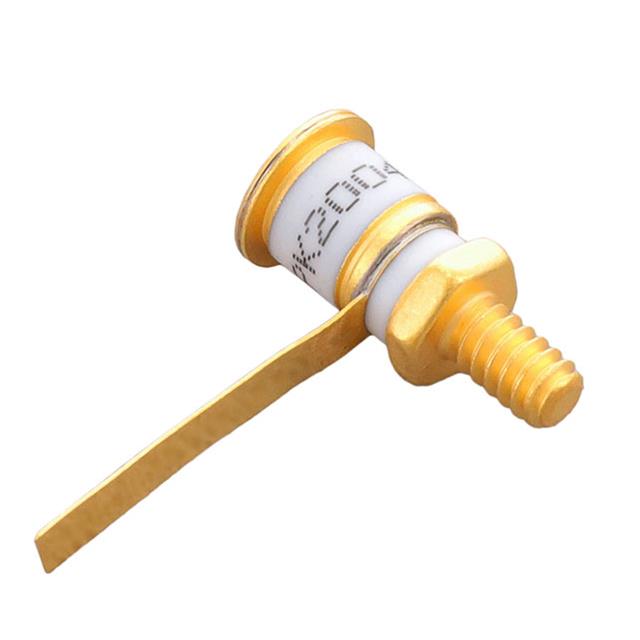

MA4PK2004
ActiveMACOM Technology Solutions
DIODE,PIN,CERAMIC_PKG,SI,ODS1038
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA4PK2004
ActiveMACOM Technology Solutions
DIODE,PIN,CERAMIC_PKG,SI,ODS1038
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA4PK2004 |
|---|---|
| Capacitance @ Vr, F | 3.2 pF |
| Current - Max [Max] | 25 A |
| Diode Type | PIN - Single |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | 1075 |
| Power Dissipation (Max) [Max] | 37.5 W |
| Resistance @ If, F | 200 mOhm |
| Voltage - Peak Reverse (Max) [Max] | 2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 163.58 | |
| 10 | $ 156.67 | |||
| 25 | $ 153.22 | |||
Description
General part information
MA4PK Series
RF Diode PIN - Single 2000V 25 A 37.5 W
