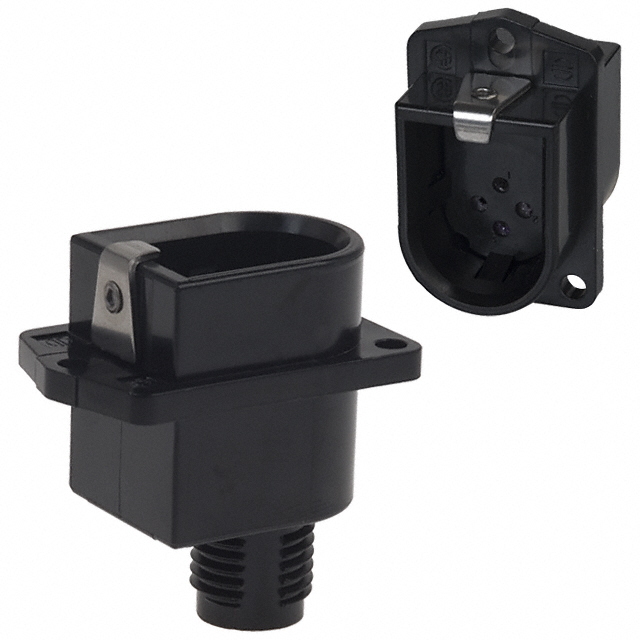

MBG4R-1

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 4POS PNL MNT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 4POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MBG4R-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	4
Shielding	Unshielded
Type	For Male Pins

Part	Mounting Feature	Material Flammability Rating	Number of Positions	Contact Shape	Shell Size - Insert	Shielding	Insert Material	Contact Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Size	Fastening Type	Connector Type	Shell Material	Note
Souriau-Sunbank by Eaton MBG4R-11	Flange	UL94 V-0	4	Circular	4	Unshielded	Thermoplastic Halogen Free	Crimp	For Female Sockets	-55 °C	125 °C	Black	16	Latch Lock	Receptacle Housing	Thermoplastic Polyester	Contacts Not Included
Souriau-Sunbank by Eaton MBG4R-1	Flange	UL94 V-0	4	Circular	4	Unshielded	Thermoplastic Halogen Free	Crimp	For Male Pins	-55 °C	125 °C	Black	16	Latch Lock	Receptacle Housing	Thermoplastic Polyester	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
