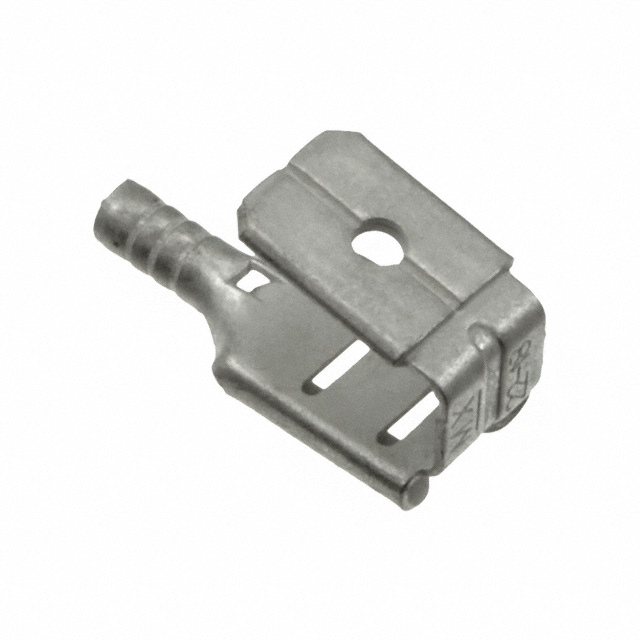

0190100027

Obsolete

Molex

CONN QC RCPT/TAB 18-22AWG 0.250

Search across all available documentation for this part.

Obsolete

Molex

CONN QC RCPT/TAB 18-22AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Part	Tab Length	Tab Length	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Mounting Type	Termination	Tab Width	Tab Width	Insulation	Contact Finish	Tab Thickness	Tab Thickness	Contact Material	Gender	Length - Overall [x]	Length - Overall [x]
Molex 0190100033	7.87 mm	0.31 in	12 AWG	10 AWG	Stacked	Free Hanging (In-Line)	Crimp	6.35 mm	0.25 in	Non-Insulated	Tin	0.032 in	0.81 mm	Brass	Female Male
Molex 0190100028	7.87 mm	0.31 in			Stacked	Free Hanging (In-Line)	Crimp	6.35 mm	0.25 in	Non-Insulated	Tin	0.032 in	0.81 mm	Brass	Female Male	15.88 mm	0.625 in
Molex 0190100032	7.87 mm	0.31 in			Stacked	Free Hanging (In-Line)	Crimp	6.35 mm	0.25 in	Non-Insulated	Tin	0.032 in	0.81 mm	Brass	Female Male	15.88 mm	0.625 in
Molex 0190100027	7.87 mm	0.31 in	22 AWG	17.5 AWG	Stacked	Free Hanging (In-Line)	Crimp	6.35 mm	0.25 in	Non-Insulated	Tin	0.032 in	0.81 mm	Brass	Female Male	15.88 mm	0.625 in
Molex 0190100031	7.87 mm	0.31 in	22 AWG	17.5 AWG	Stacked	Free Hanging (In-Line)	Crimp	6.35 mm	0.25 in	Non-Insulated	Tin	0.032 in	0.81 mm	Brass	Female Male	15.88 mm	0.625 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.250" (6.35mm) Quick Connect Female and Male 18-22 AWG Crimp Connector Non-Insulated
