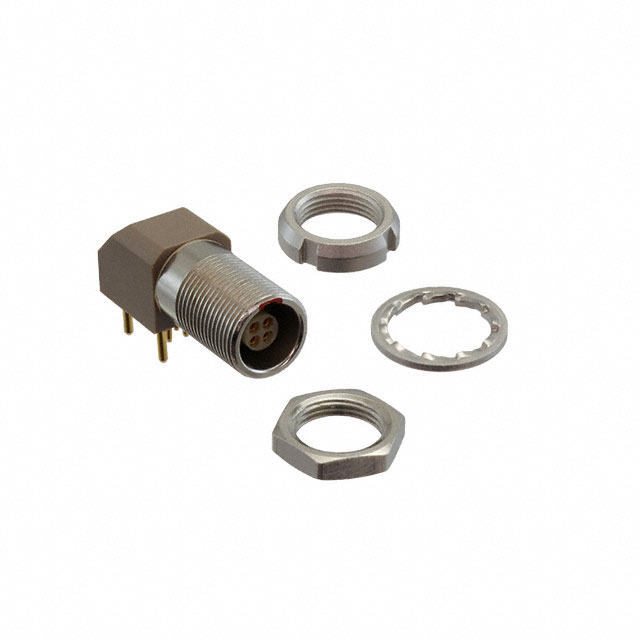

XBG.00.304.HLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	XBG.00.304.HLN

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

Part	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Ingress Protection	Orientation	Contact Material	Shell Finish	Shell Size - Insert	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material	Connector Type	Current Rating (Amps)	Termination	Primary Material	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Insert Material	Number of Positions
LEMO XBG.00.304.HLN	Push-Pull	59 Áin	1.5 Ám	Shielded	IP50	G	Bronze	Nickel	304	Bulkhead - Front Side Nut	-55 °C	250 °C	Ground	Brass and Polyphenylene Sulfide (PPS)	Receptacle Female Sockets	2 A	Solder	Metal	UL94 V-0	Panel Mount Right Angle Through Hole	Gold	Polyetheretherketone (PEEK)	4
